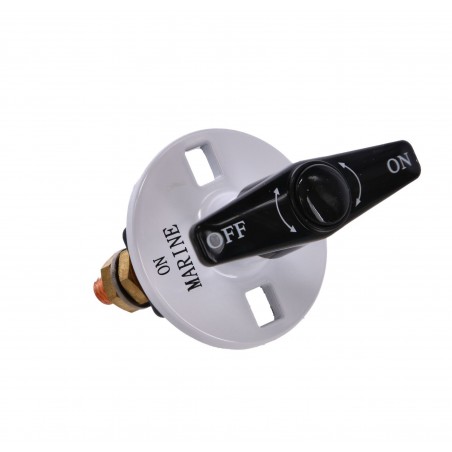

SINGLE-POLE BATTERY CUT-OFF SWITCH 300A BLACK
Art. P204675
Single-pole battery disconnect.
-Voltage: 12 volts to 48 volts DC
-Continuous capacity: 300 Amp.
-Instantaneous capacity: 1000 Amps / 10 sec.
-Extra long terminals: 2 copper bolts Ø 9.8 mm x length 25 mm
-Index of protection: IP 66
-Norm NF EN 28846 (ISO 8846)
-Dimensions: base Ø 68 mm x handle Ø 80 mm x length 100 mm
-Fixing holes: Ø 8 mm x drilling spacing: 45 mm
-Flush mount dimensions: Hole Ø 23 mm, wall thickness 18 mm max.
-Space available: 47 mm behind partition
-Voltage: 12 volts to 48 volts DC
-Continuous capacity: 300 Amp.
-Instantaneous capacity: 1000 Amps / 10 sec.
-Extra long terminals: 2 copper bolts Ø 9.8 mm x length 25 mm
-Index of protection: IP 66
-Norm NF EN 28846 (ISO 8846)
-Dimensions: base Ø 68 mm x handle Ø 80 mm x length 100 mm
-Fixing holes: Ø 8 mm x drilling spacing: 45 mm
-Flush mount dimensions: Hole Ø 23 mm, wall thickness 18 mm max.
-Space available: 47 mm behind partition
Available
Availability over 7d
| Product | Description | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|
| P204675 | SINGLE-POLE BATTERY CUT-OFF SWITCH 300A BLACK | €40.57 | N | 4 |
