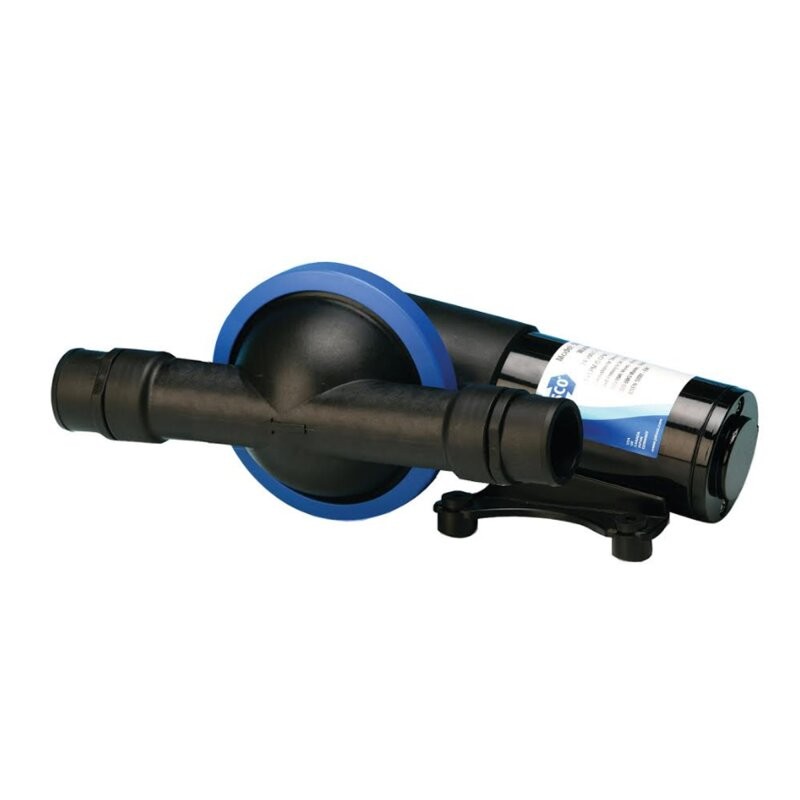

DIAPHRAGM DISCHARGE PUMP
Art. Z50890-1000

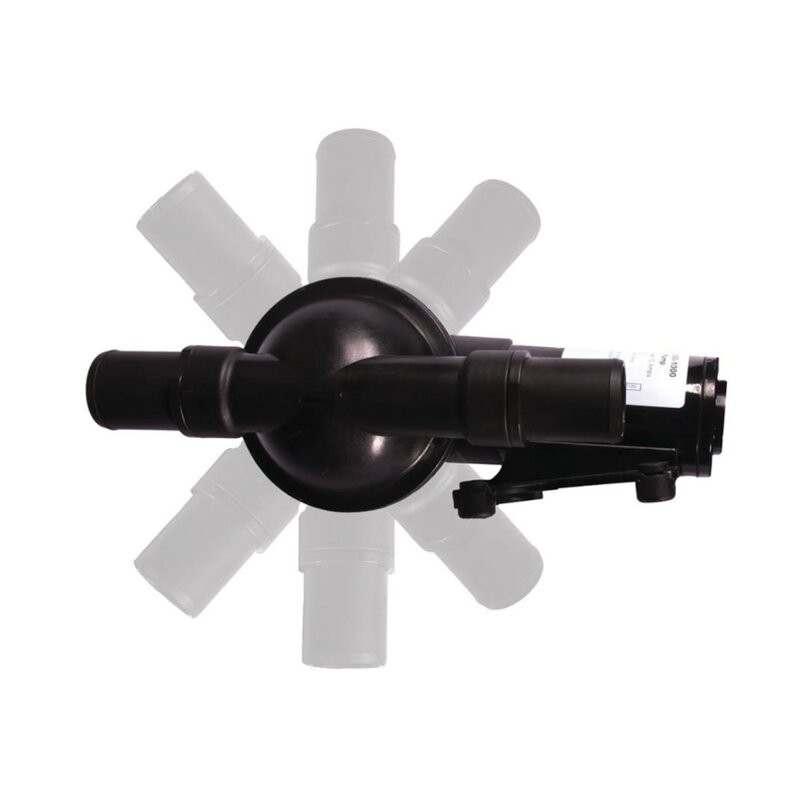

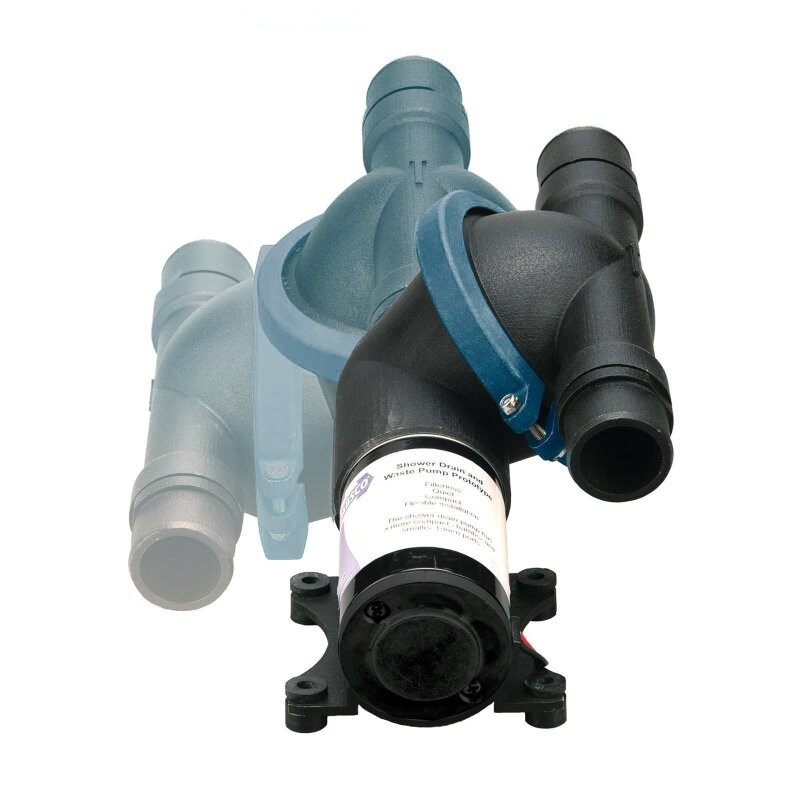

Very quiet diaphragm pump with 360° rotating head for multiple installation possibilities. Can work dry without damage. Complies with ISO 8846.
Max. flow rate 19 litres/minute (5 GPM). Self-priming up to a height of 3m
Connections: 38mm (1-1/2") pipe inlet/outlet
Current draw max 8A; fuse 10A

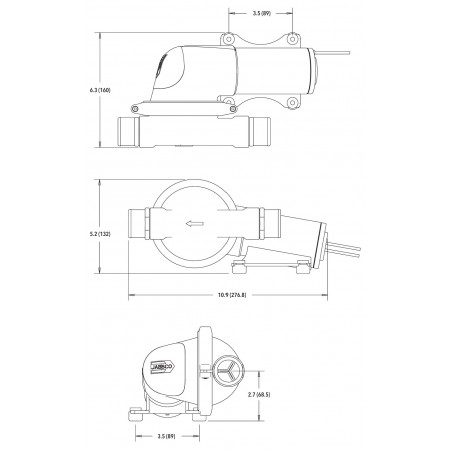

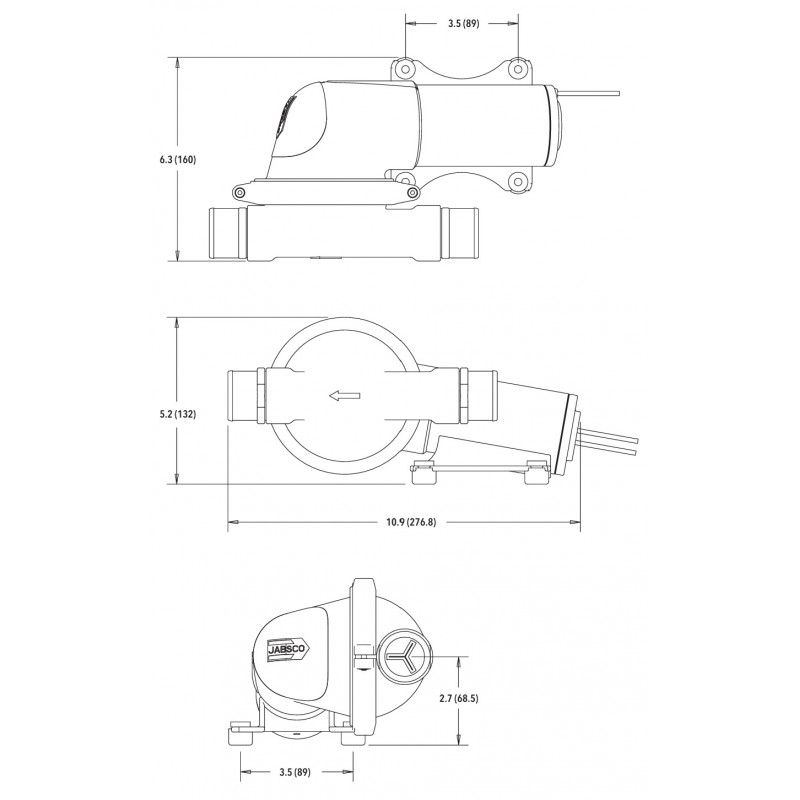

Dimensions: Height 13.2cm / Width 16.1cm / Length 27.8cm
Max. flow rate 19 litres/minute (5 GPM). Self-priming up to a height of 3m
Connections: 38mm (1-1/2") pipe inlet/outlet
Current draw max 8A; fuse 10A
Dimensions: Height 13.2cm / Width 16.1cm / Length 27.8cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|
| Z50890-1000 | 50890-1000 | 0325089012 | 19 L/MIN | 3 M | 38 MM (1-1/2") | 12V - 8A | 132X161X278 MM | €335.72 | N | 1 |
| Z50890-1100 | 50890-1100 | 0325089024 | 19 L/MIN | 3 M | 38 MM (1-1/2") | 24V - 2,5A | 132X161X278 MM | €351.54 | N | 1 |
