MANUAL TOILET JABSCO COMPACT
Art. Z29090-5000

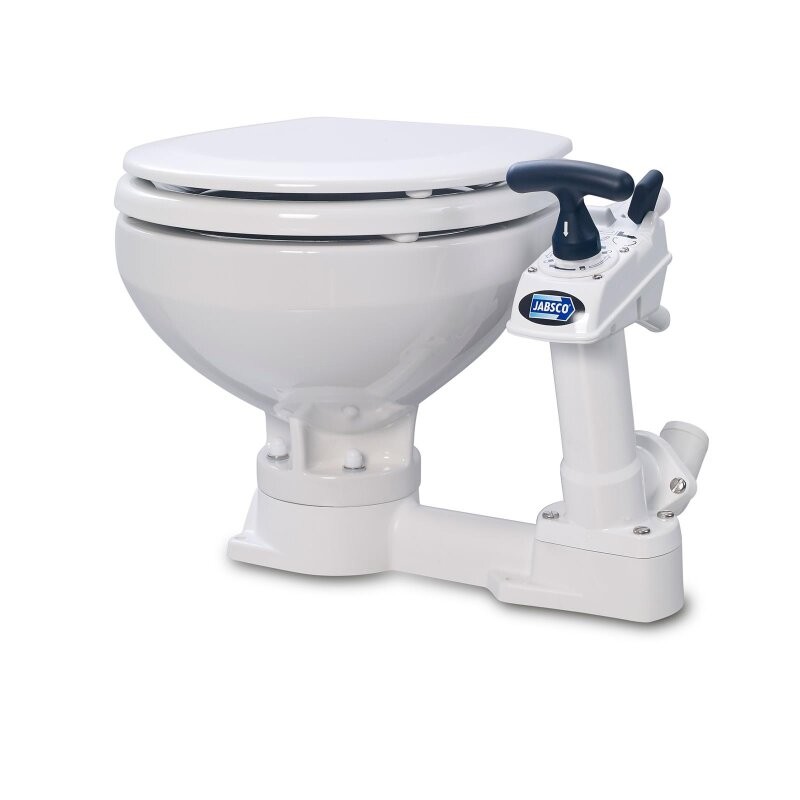

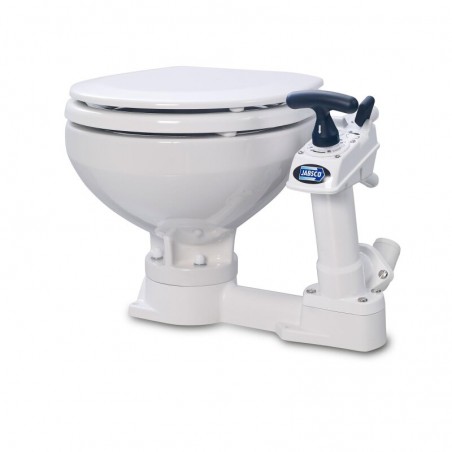

Twist n' Lock' manual toilet. The twist “n” lock safety handle helps protect against backflow by blocking the flush valve when it is closed. You can convert the hand pump from the right side of the bowl to the left side of the bowl. Powerful, self-priming suction and pressure piston pump. Ergonomically designed handle and conveniently mounted rinse control lever for easy operation. Easy operation due to angled pump body with long stroke.
Continuous 38 mm (1 ½") diameter discharge pipe minimises clogging. Automatic 38 mm (1 ½") diameter butterfly valve prevents backflow.
Simple installation thanks to the multi-angle drain elbow (can be rotated 360°). Pure white ceramic glass toilet bowl in compact dimensions.
Connections: 38mm (1-1/2‘) outlet, 19mm (3/4’) inlet.

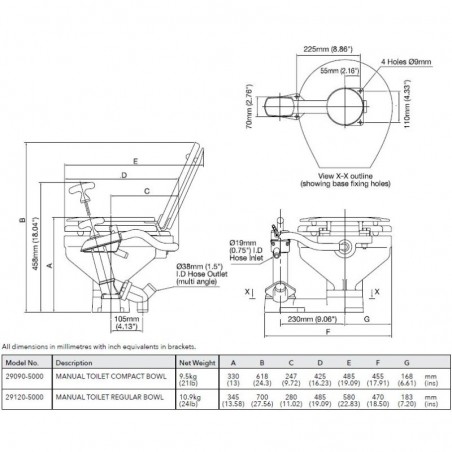

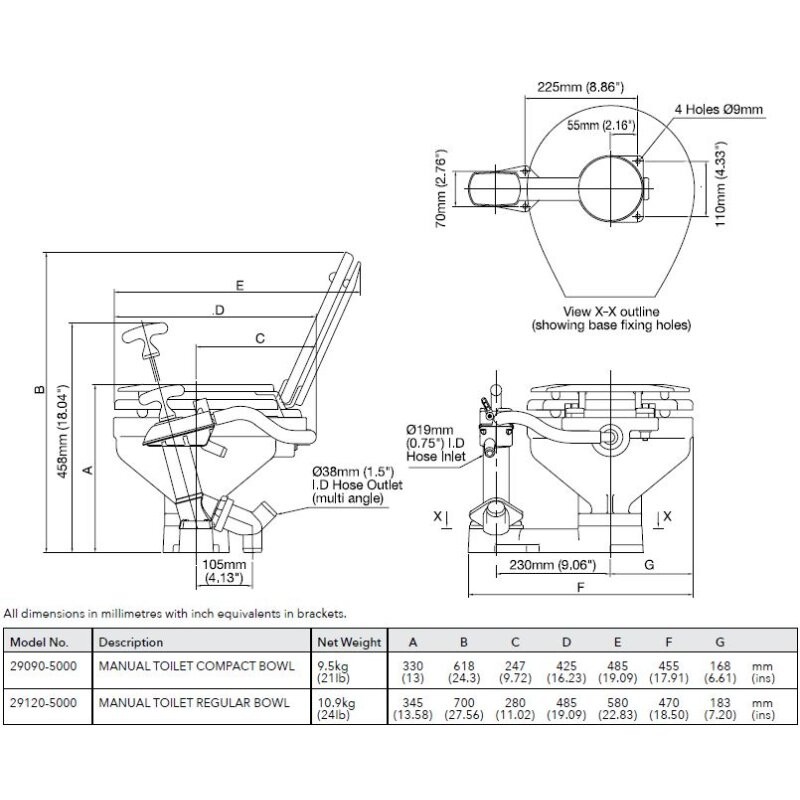

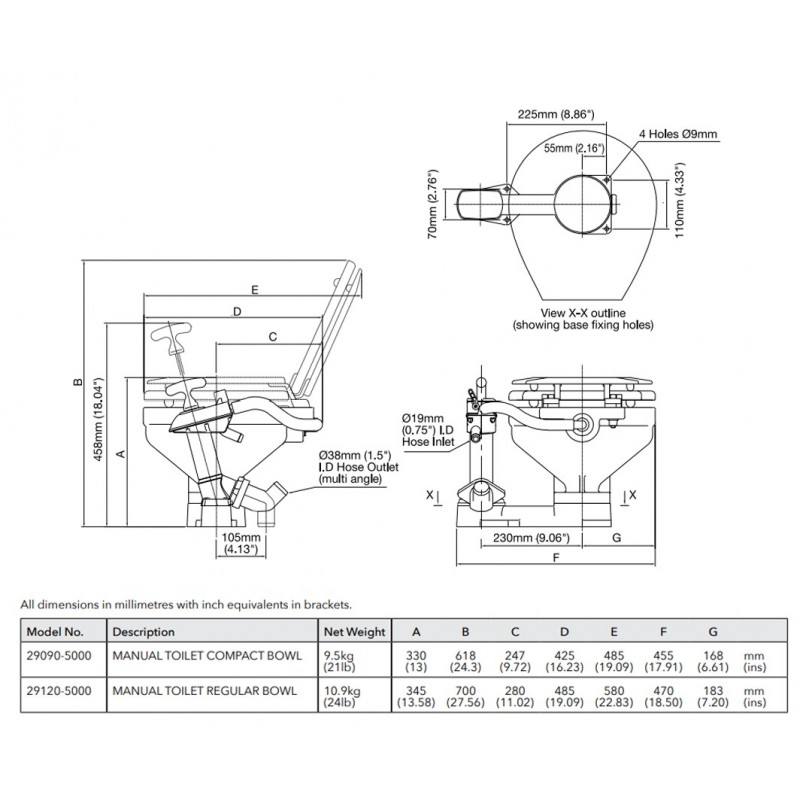

Dimensions: Height 33.5cm / Width 45.0cm / Depth 42.5cm (with closed lid).
(ex codice FNI 2424804)
Continuous 38 mm (1 ½") diameter discharge pipe minimises clogging. Automatic 38 mm (1 ½") diameter butterfly valve prevents backflow.
Simple installation thanks to the multi-angle drain elbow (can be rotated 360°). Pure white ceramic glass toilet bowl in compact dimensions.
Connections: 38mm (1-1/2‘) outlet, 19mm (3/4’) inlet.
Dimensions: Height 33.5cm / Width 45.0cm / Depth 42.5cm (with closed lid).
(ex codice FNI 2424804)
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Inlet Ø | Outlet Ø | Height | Width | Depth | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|
| Z29090-5000 | 29090-5000 | 0302909050 | 19 MM (3/4") | 38 MM (1-1/2") | 345 MM | 455 MM | 425 MM | €288.20 | N | 1 |
