WC QUIET FLUSH E2 COMPACT
Art. Z38245-3092

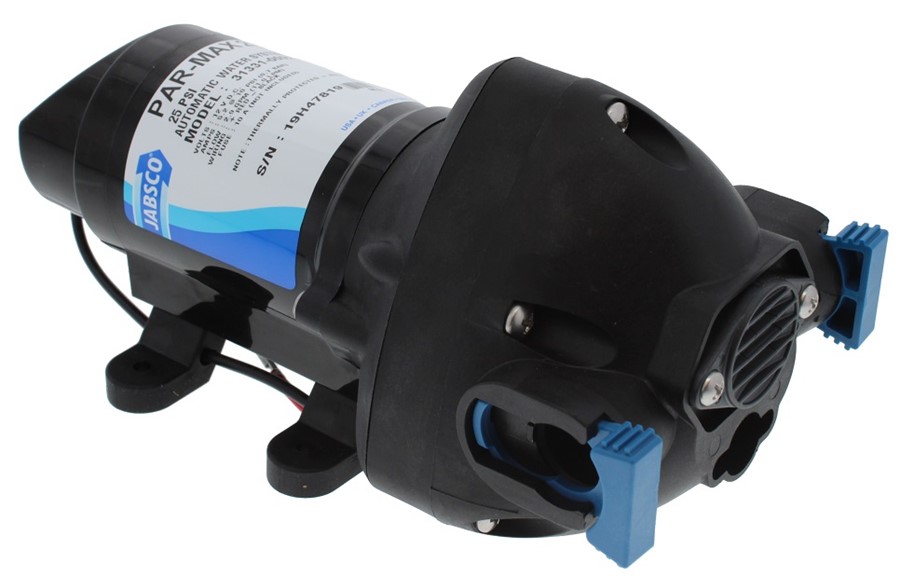

Jabsco high-performance electric toilet with seawater flush. Water consumption approx. 1-2 L per flush. A PAR-MAX 3 self-priming pump with 19 mm (3/4") hose connections is included to flush the toilet bowl with seawater. A white 19 mm (3/4") hose 1.8 m long is also included to connect the flushing pump to the toilet's flushing water inlet. Powerful centrifugal flush pump for breaking up and evacuating toilet waste with a 25 mm (1") hose. Made of white ceramic in a compact size.

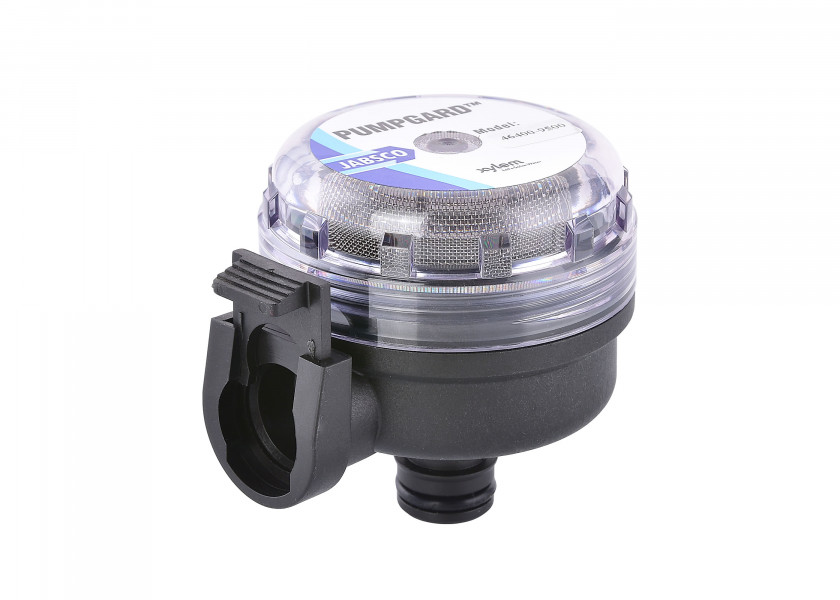

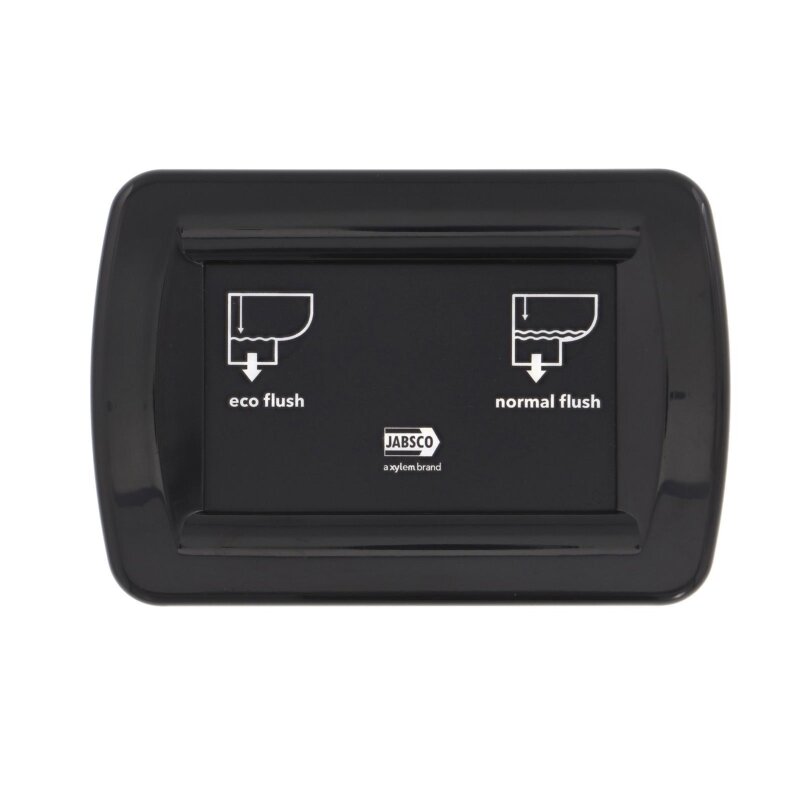

Including: 25 mm waste pump in straight version and with 90° bends, hose adapter for connection to a 38 mm (1-1/2") waste pipe, seawater filter and control panel with Blackbox.
Max. current consumption 20A, fuse 25A
Dimensions: Height 35.2cm / Width 33.1cm / Depth 41.1cm
Including: 25 mm waste pump in straight version and with 90° bends, hose adapter for connection to a 38 mm (1-1/2") waste pipe, seawater filter and control panel with Blackbox.
Max. current consumption 20A, fuse 25A
Dimensions: Height 35.2cm / Width 33.1cm / Depth 41.1cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Model | Supply | Inlet Ø | Outlet Ø | Height | Width | Depth | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z38045-3094
|
38045-3094 | 0303804534 | FRESH WATER | 24 VOLT- 10 AMP | 19 MM (3/4") | 25 MM (1") | 352 MM | 331 MM | 411 MM | €1,293.20 | N |
4
30/06/2026
Alert The date is purely indicative |
|
Z38245-3092
|
38245-3092 | 0303824532 | SALT WATER | 12 VOLT- 20 AMP | 19 MM (3/4") | 25 MM (1") | 352 MM | 331 MM | 411 MM | €1,225.14 | N | 1 |
|
Z38045-3092
|
38045-3092 | 0303804532 | FRESH WATER | 12 VOLT - 20 AMP | 19 MM (3/4") | 25 MM (1") | 352 MM | 331 MM | 411 MM | €1,236.17 | N | 4 on request |
|
Z38245-3094
|
38245-3094 | 0303824534 | SALT WATER | 24 VOLT- 10 AMP | 19 MM (3/4") | 25 MM (1") | 352 MM | 331 MM | 411 MM | €1,182.19 | N | 1 |
Forniture nautiche italiane sells only to retailers and installers of the sector

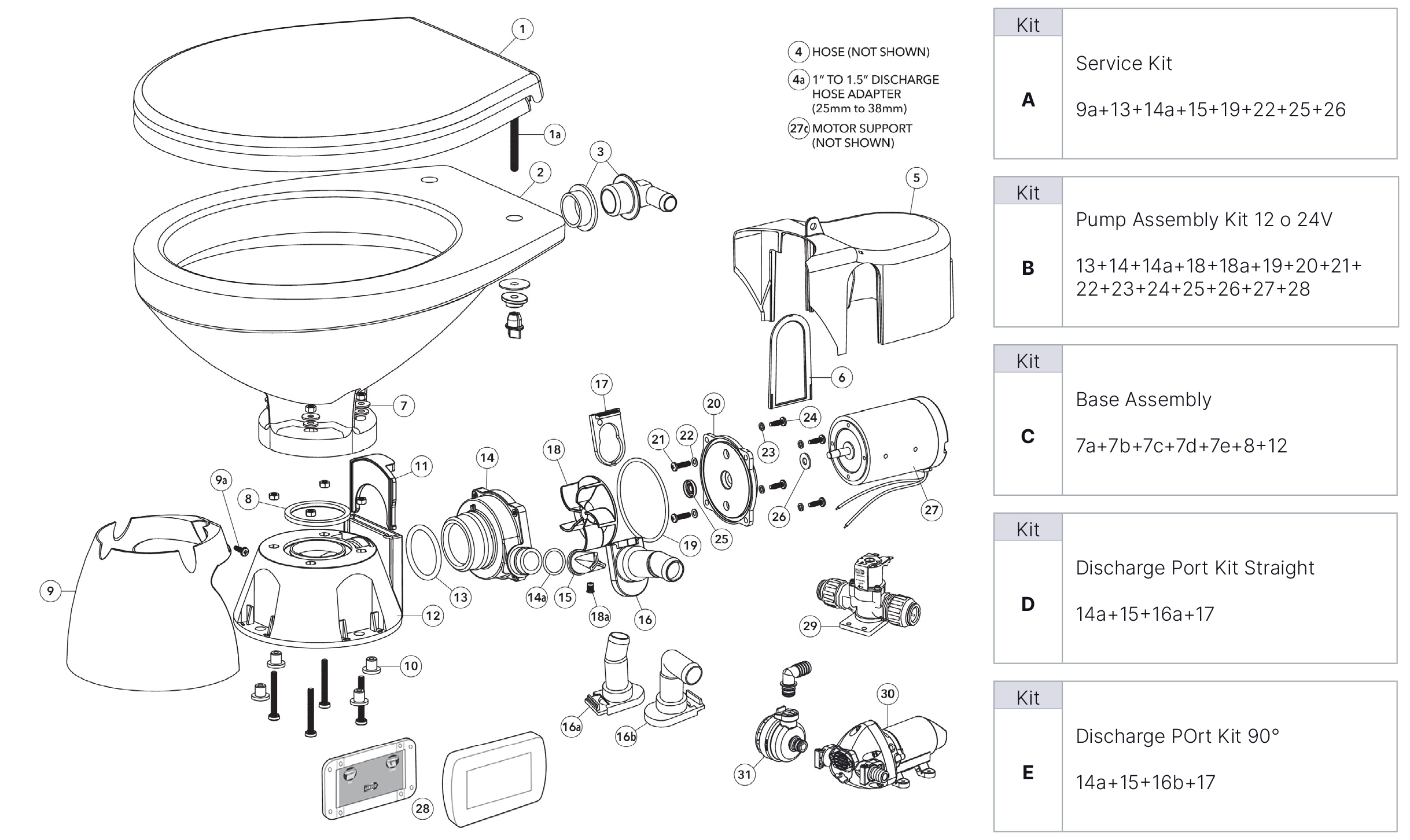

How to became reseller?SPARE PARTS
