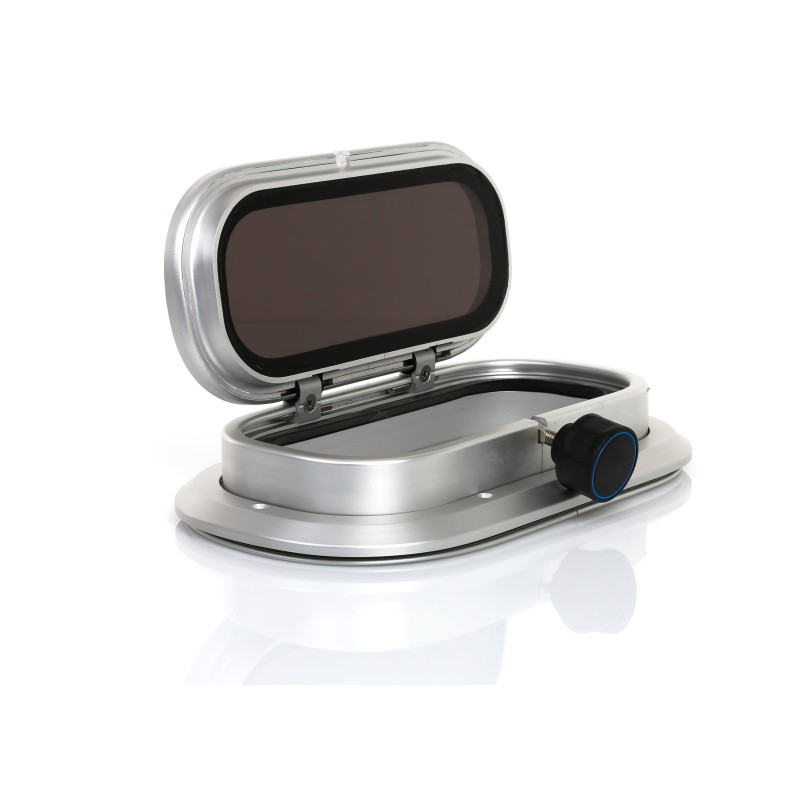

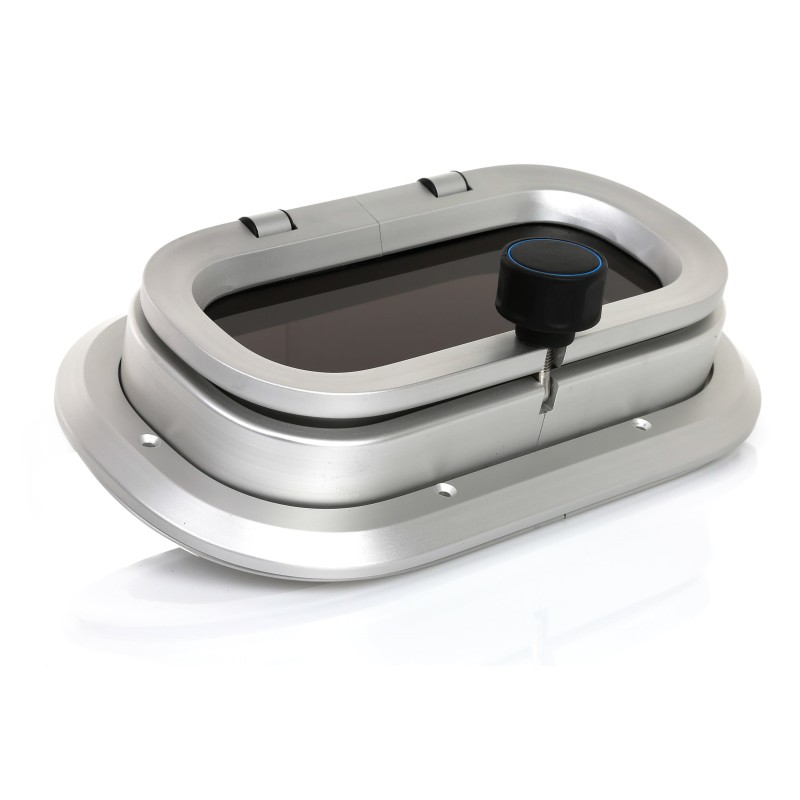

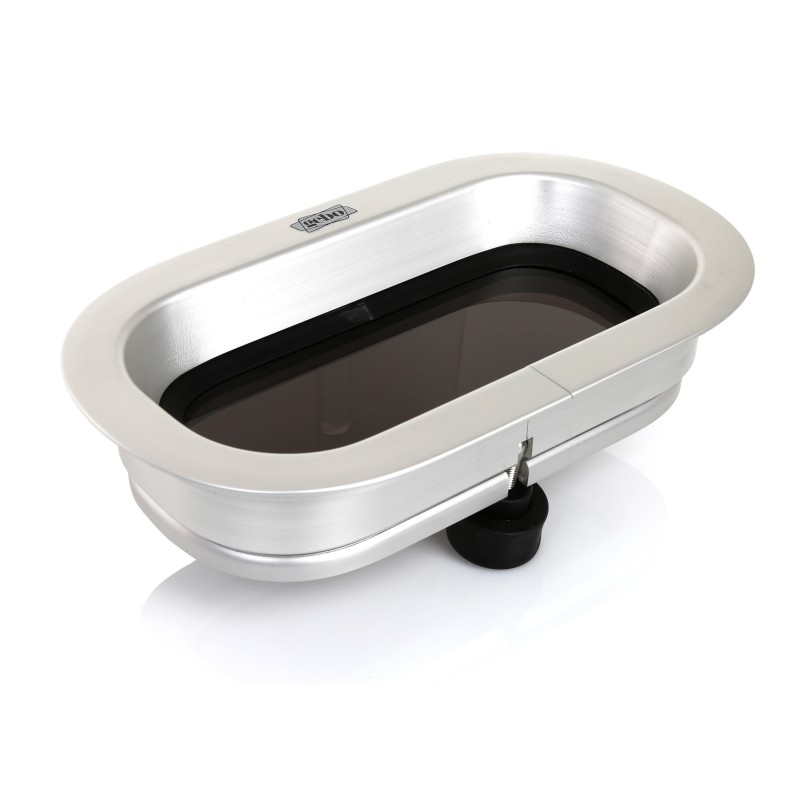

FLUSHLINE PORTLIGHTS IN L.L.

The GEBO Flushline portlight installs without drilling the bulkhead, thanks to the patented clamp system: sealant is applied between the portlight and the bulkhead, then the inner frame is screwed onto the back of the outer frame from inside, with no through-holes in the bulkhead itself. Suited to bulkheads from 9 to 21 mm thick.

Rectangular model with rounded edges, in anodized light alloy, with 10mm smoky grey acrylic polycarbonate glazing. The friction hinges make the door self-supporting at any opening position, with no separate support arm needed. The shaped edge prevents water pooling on the glass.

Technical specifications:
- Dimensions 293x166 mm
- 56 mm corner radius
- Smoky grey acrylic polycarbonate glazing, 10 mm thick
- Anodized light alloy body
- No-drilling installation, patented clamp system
- Suited to bulkheads 9 to 21 mm thick
- Friction hinges, self-supporting door at any position
- Shaped anti-pooling edge
