PRE-INSULATED LAMELLAR TERMINAL
Art. P204581

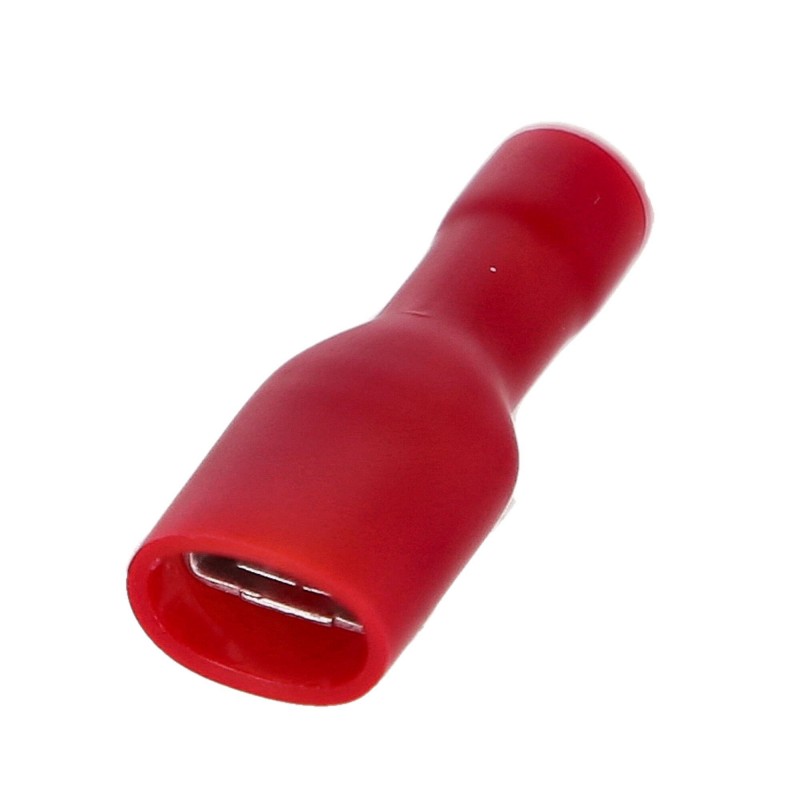

The pre-insulated blade (spade/faston) terminal, for a quick push-fit connection with no screwing needed: the male version is crimped onto the cable, while the female version plugs onto the matching male tab already fitted on the component being connected (a switch or a motor, for example). the colour follows the universal standard for pre-insulated terminals: red for 0.5-1.5 mm² cables, blue for 1.5-2.5 mm², yellow for 4-6 mm², so you can spot the right size at a glance. A fully-insulated female version (no exposed metal at all), a two-way piggy-back version for connecting two cables at the same point, and a heat-shrink version for extra watertight sealing in spots exposed to water are also available.
Technical specifications:
- Pre-insulated blade terminal, 2.8 or 6.3 mm width, male or female
- Colour by cable size: red 0.5-1.5 mm2, blue 1.5-2.5 mm2, yellow 4-6 mm2
- Also available as fully-insulated female, two-way piggy-back and heat-shrink

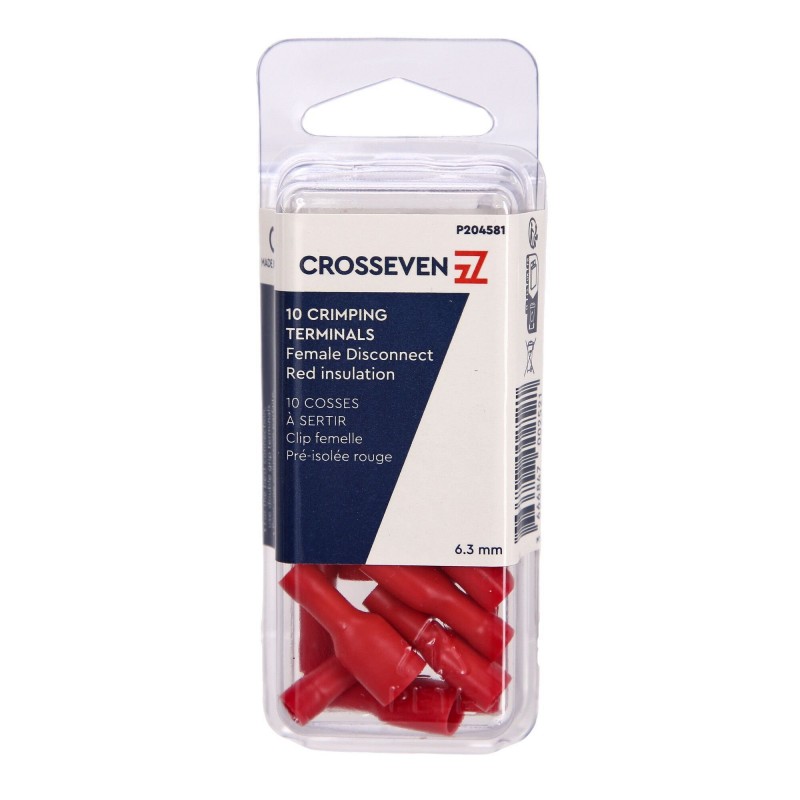

- This version: End Piece All Insulated End Cap Hollow MM 6.3 Red 10 Pcs
Technical specifications:
- Pre-insulated blade terminal, 2.8 or 6.3 mm width, male or female
- Colour by cable size: red 0.5-1.5 mm2, blue 1.5-2.5 mm2, yellow 4-6 mm2
- Also available as fully-insulated female, two-way piggy-back and heat-shrink
- This version: End Piece All Insulated End Cap Hollow MM 6.3 Red 10 Pcs
Available
Availability over 7d
| Product | Description | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|
|
P204581
|
END PIECE ALL INSULATED END CAP HOLLOW MM 6.3 RED 10 PCS | €5.90 | CF | 1 |
P204582
|
END PIECE FULLY INSULATED (ALL SOCKET) MM 6.3 BLUE 10 PCS | €6.28 | CF | 1 |
P204583
|
END PIECE FULLY INSULATED (ALL SOCKET) MM 6.3 YELLOW 10 PCS | €7.00 | CF | 1 |
|
P204584
|
END CAP ALL INSULATED SOCKET MM 6.3 RED 100 PCS | €29.74 | CF | 1 |
|
P204585
|
END CAP ALL INSULATED SOCKET MM 6.3 BLUE 100 PCS | €32.49 | CF | 1 |
|

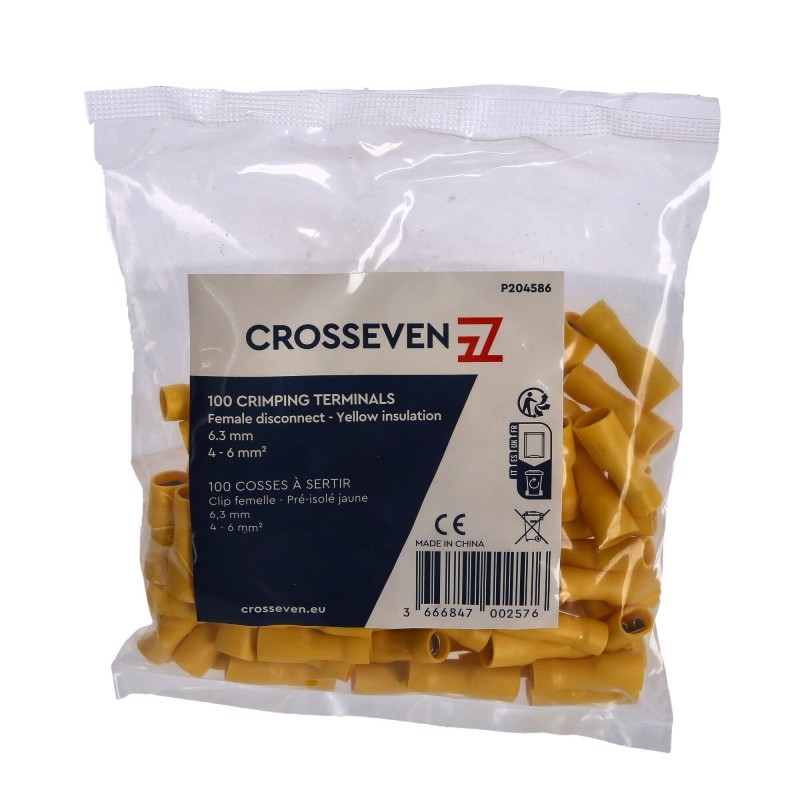

P204586
|
END CAP ALL INSULATED SOCKET MM 6.3 YELLOW 100 PCS. | €37.64 | CF | 1 |
