PAR MAX 6HD AUTOCLAVE PUMP
Art. ZP601J-215S-3A
The Jabsco Par Max Heavy Duty diaphragm pump is designed for high performance water pressure control.
Flow rate up to 22.7 litres/minute (6 GPM) at free discharge.
The pressure switch switches the pump on at approx. 1.4 bar (20 psi) and off at approx. 2.8 bar (40 psi).
Santoprene 5-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2.1m.
Can run dry without damage.
Equipped with a bypass for smoother flow.

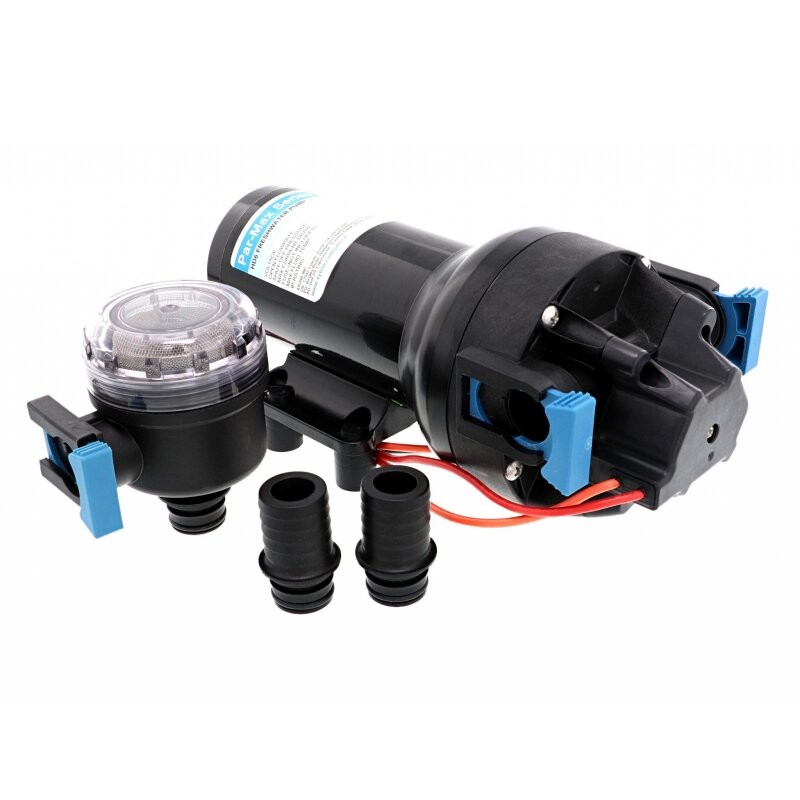

Included: 2 x 19mm (3/4") straight push-on connectors, plus 1 suction filter 40 MESH
Max. current draw 15A; fuse 25A

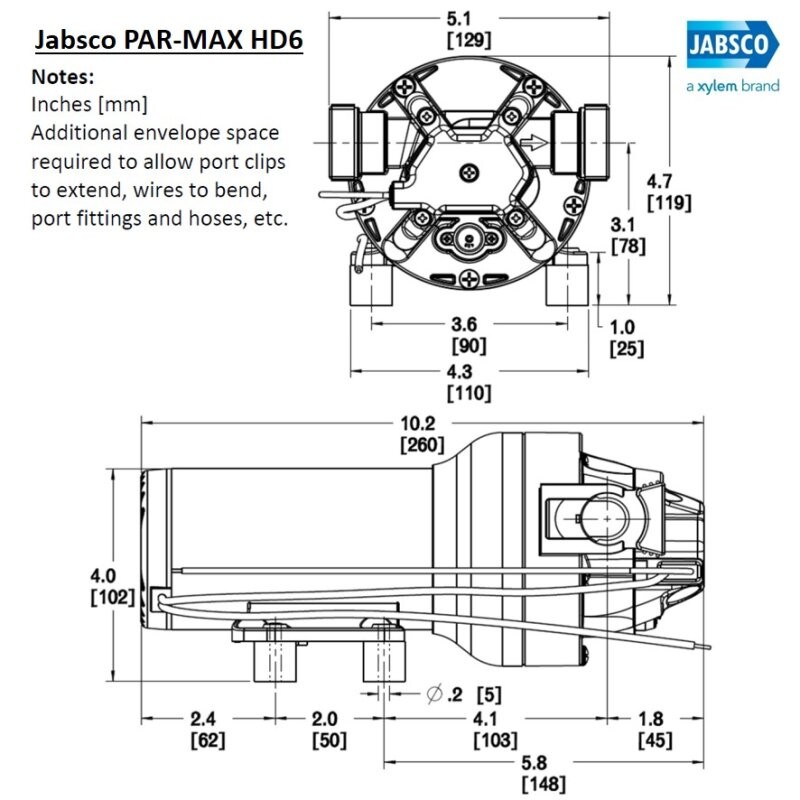

Dimensions: Height 11.9cm / Width 12.9cm (without connections) / Length 26cm
(ex codice FNI 1616587)
Flow rate up to 22.7 litres/minute (6 GPM) at free discharge.
The pressure switch switches the pump on at approx. 1.4 bar (20 psi) and off at approx. 2.8 bar (40 psi).
Santoprene 5-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2.1m.
Can run dry without damage.
Equipped with a bypass for smoother flow.
Included: 2 x 19mm (3/4") straight push-on connectors, plus 1 suction filter 40 MESH
Max. current draw 15A; fuse 25A
Dimensions: Height 11.9cm / Width 12.9cm (without connections) / Length 26cm
(ex codice FNI 1616587)
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Pressure | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZP602J-218S-3A | P602J-218S-3A | 0226021824 | 22,7 L/MIN | 60 PSI | 2 M | 19 MM (3/4") | 24V - 7A | 119X129X260 MM | €619.22 | N | 4 |
| ZP601J-218S-3A | P601J-218S-3A | 0226011812 | 22,7 L/MIN | 60 PSI | 2 M | 19 MM (3/4") | 12V - 15A | 119X129X260 MM | €619.22 | N | 1 |
| ZP602J-215S-3A | P602J-215S-3A | 0226021524 | 22,7 L/MIN | 40 PSI | 2 M | 19 MM (3/4") | 24V - 7A | 119X129X260 MM | €509.56 | N | 1 |
| ZP601J-215S-3A | P601J-215S-3A | 0226011512 | 22,7 L/MIN | 40 PSI | 2 M | 19 MM (3/4") | 12V - 15A | 119X129X260 MM | €472.48 | N | 1 |
