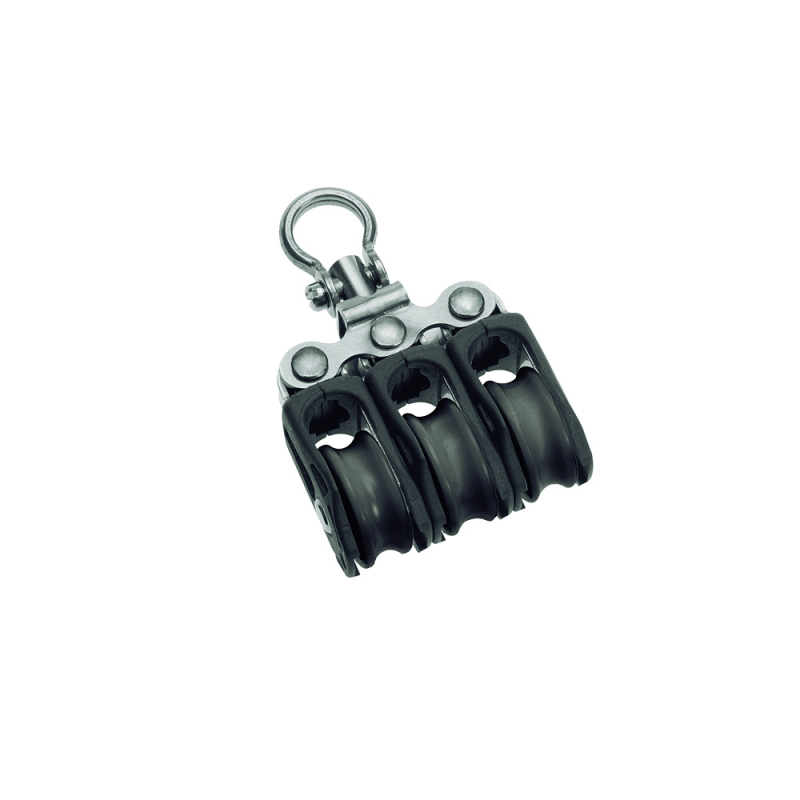

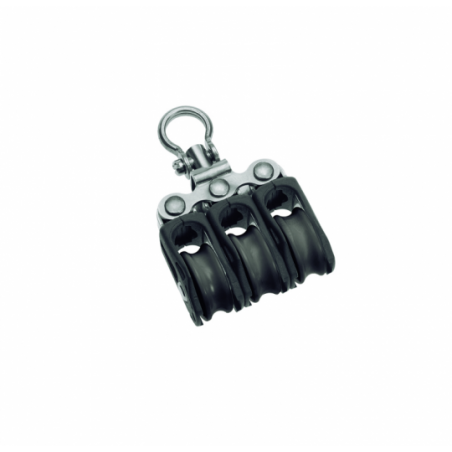

TRIPLE BLOCK - SWIVEL
Art. 7800330
The Barton block with three sheaves is built so that the mechanical advantage rises above a single or double block, useful for building a purchase when more force multiplication is needed; the swivel eye rotates to align itself with the direction of pull, stopping the line from twisting under load.
Body in corrosion-resistant marine materials, rated for a 275 kg working load and a 550 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 5 mm
- Maximum working load 275 kg
- Breaking load 550 kg
- Sheave dimensions 20 x 8 mm
- Length 66.7 mm
Body in corrosion-resistant marine materials, rated for a 275 kg working load and a 550 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 5 mm
- Maximum working load 275 kg
- Breaking load 550 kg
- Sheave dimensions 20 x 8 mm
- Length 66.7 mm
Available
Availability over 7d
| Product | Ø Wire | Ø | Working load | Breaking Load | Model | TYPE | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
7800330
|
MAX 5 MM | PULLEY 20 MM X H 8 MM | 275 KG | 550 KG | TRIPLE | SWIVEL | €78.24 | N | 1 |
