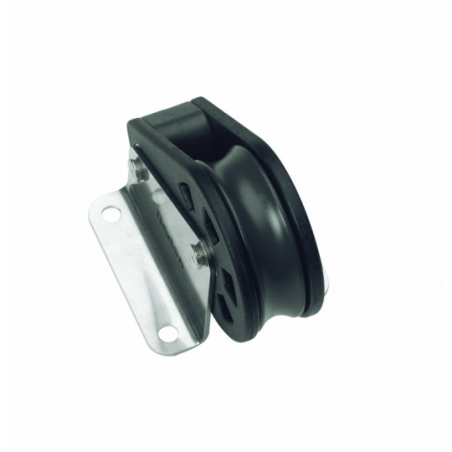

UPRIGHT SINGLE BLOCK WITH FAIRLEAD
Art. 7801151
The Barton block with a single sheave is built so that with a vertical eye, oriented for a pull coming from above or below rather than from the side; the fixed eye doesn't rotate, the right choice when the pull direction never changes. Fitted with a becket at the base, useful for securing the line's end or for building a purchase with a greater mechanical ratio.
Body in corrosion-resistant marine materials, rated for a 355 kg working load and a 710 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 8 mm
- Maximum working load 355 kg
- Breaking load 710 kg
- Sheave dimensions 30 x 12 mm
- Length 63 mm
Body in corrosion-resistant marine materials, rated for a 355 kg working load and a 710 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 8 mm
- Maximum working load 355 kg
- Breaking load 710 kg
- Sheave dimensions 30 x 12 mm
- Length 63 mm
Available
Availability over 7d
| Product | Ø Wire | Ø | Working load | Breaking Load | Model | TYPE | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
7801151
|
MAX 8 MM | PULLEY 30 MM X H 12 MM | 350 KG | 700 KG | SINGLE | UPRIGHT WITH FAIRLEAD | €45.16 | N | 1 |
