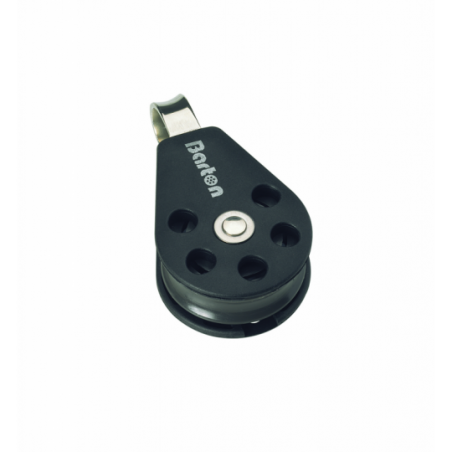

SINGLE BLOCK - FIXED EYE
Art. 7803110
The Barton block with a single sheave is built so that the fixed eye doesn't rotate, the right choice when the pull direction never changes.
Body in corrosion-resistant marine materials, rated for a 400 kg working load and a 800 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 10 mm
- Maximum working load 400 kg
- Breaking load 800 kg
- Sheave dimensions 45 x 13 mm
- Length 80 mm
Body in corrosion-resistant marine materials, rated for a 400 kg working load and a 800 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 10 mm
- Maximum working load 400 kg
- Breaking load 800 kg
- Sheave dimensions 45 x 13 mm
- Length 80 mm
Available
Availability over 7d
| Product | Ø Wire | Ø | Working load | Breaking Load | Model | TYPE | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
7803110
|
MAX 10 MM | PULLEY 45 MM X H 14 MM | 385 KG | 770 KG | SINGLE | FIXED EYE (WITHOUT SHACKLE) + BECKET | €26.36 | N | 1 |
