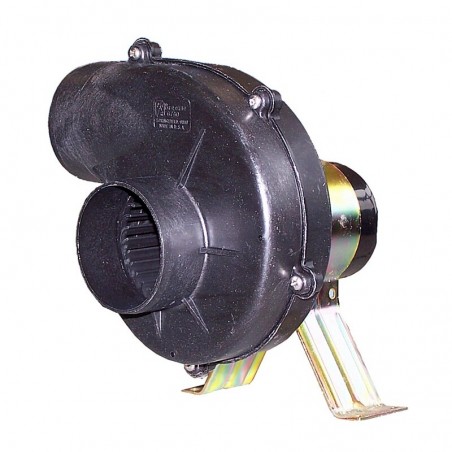

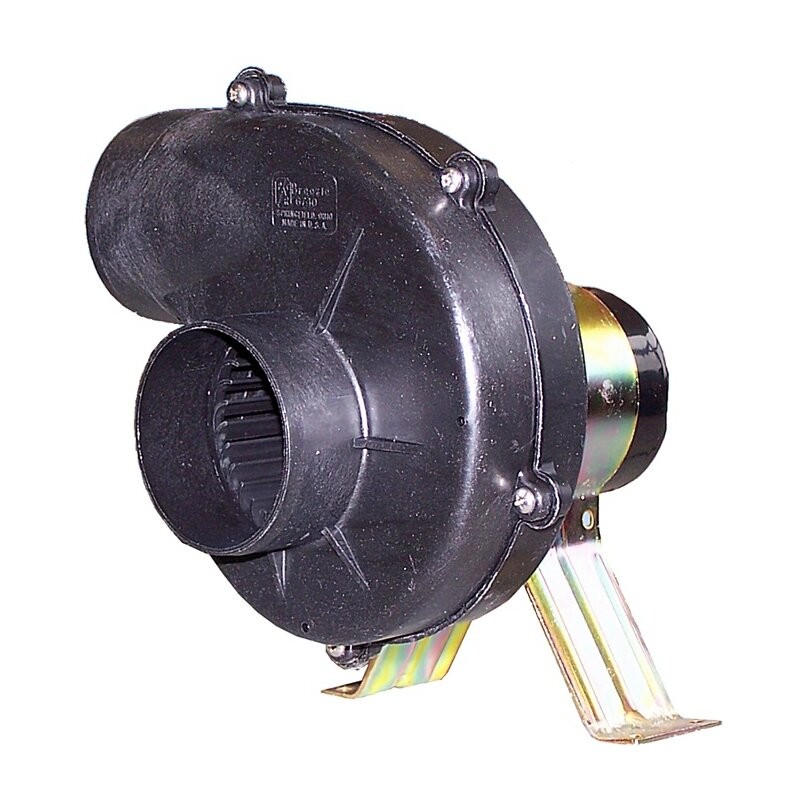

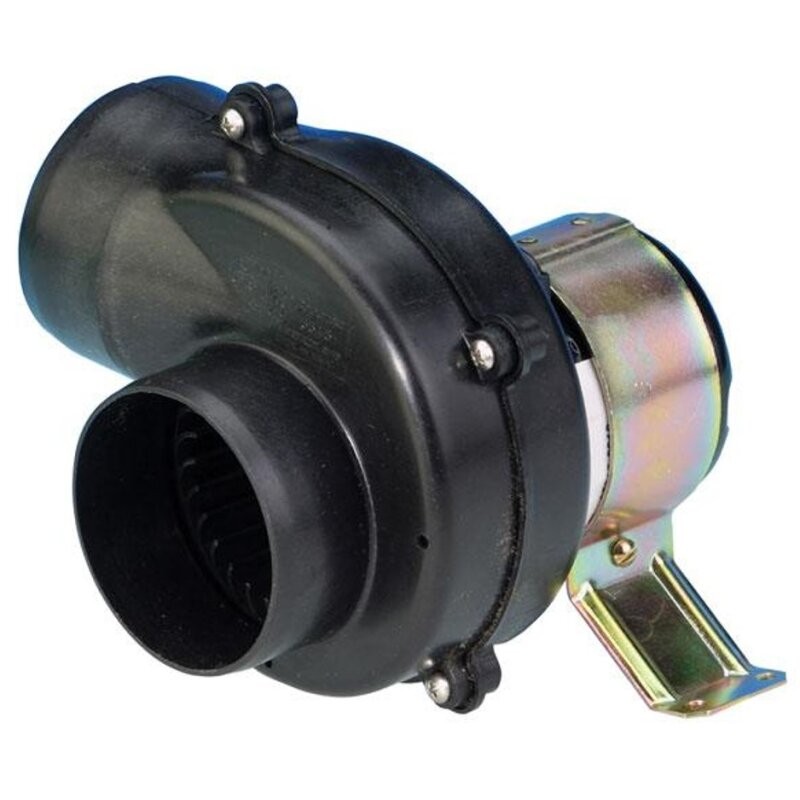

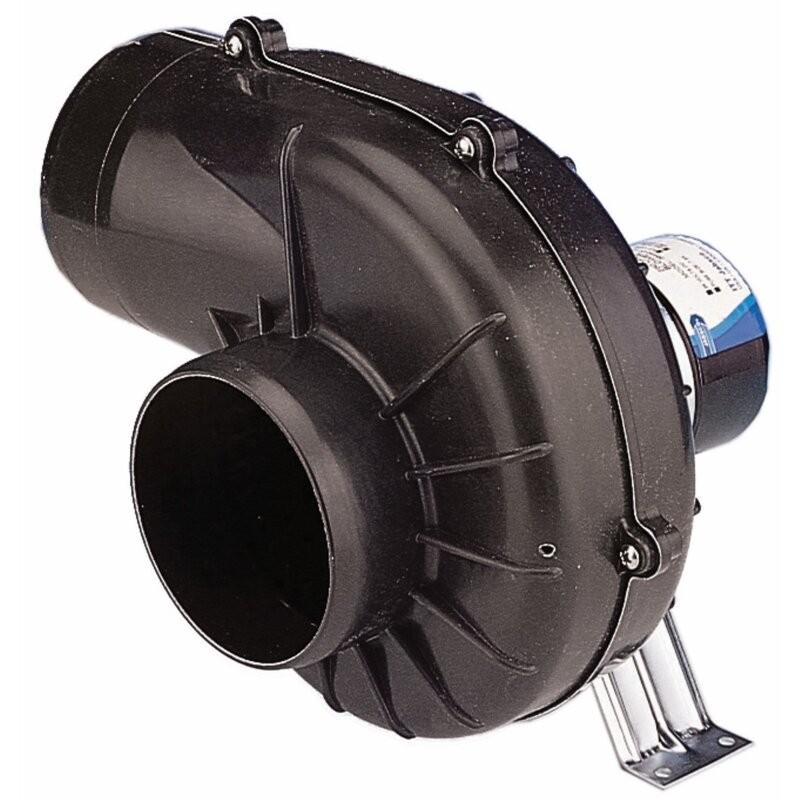

BRACKET-MOUNTED EXTRACTORS
Art. Z35440-0000EU

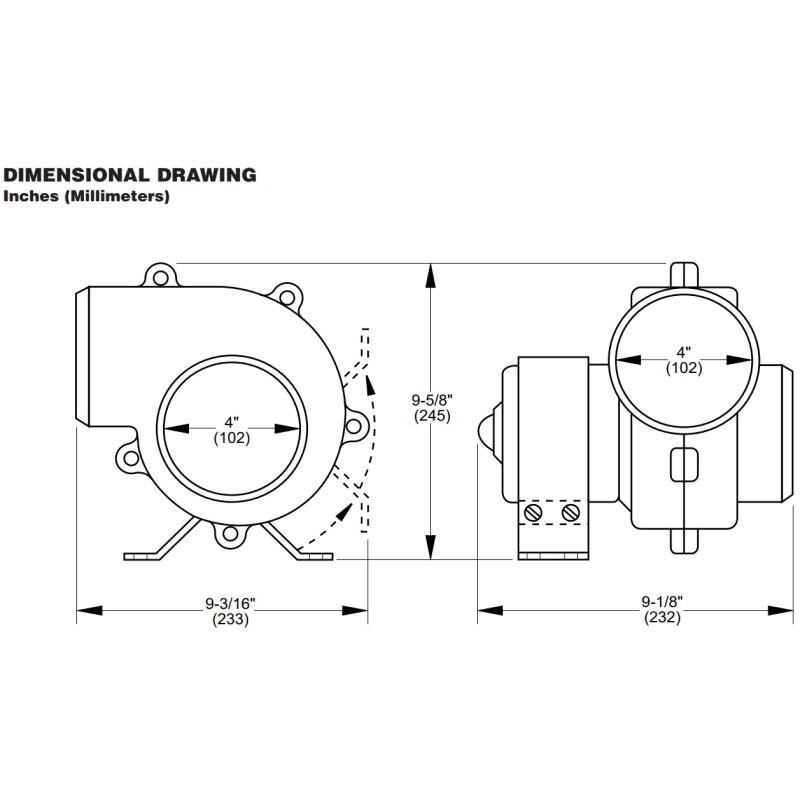

Blowers are corrosion resistant and provide ventilation to bilges, engine rooms, galleys and decks. Power: 7.1 m³/min (250 CFM) at open flow. Dimensionally stable and quiet Delrin rotors. Efficient airflow with high volume. Robust reinforced plastic housing. Made from corrosion-resistant materials. Complies with ISO 8846 MARINE and USCG 183.410 standards: Ignition protection. Flexible mounting allows 360º adjustment of the outlet direction. Connections: For 100 mm (4") ducts. Amperage approx. 12A; 15A fuse. Dimensions: Height 24.5 cm / width 23.3 cm / length 23.2 cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
| Z36740-0010 | 36740-0010 | 0253674010 | 4,2 M³/MIN | 75 MM (3") | 24V - 3,3 AMP | 235X200X200 MM | €403.00 | N | 4 |
| Z35440-0010EU | 35440-0010EU | 0253544011 | 7,1 M³/MIN | 100 MM (4") | 24V - 5,3AMP | 245X233X232 MM | €544.23 | N |
4
22/08/2025
Alert The date is purely indicative |
| Z35440-0000EU | 35440-0000EU | 0253544001 | 7,1 M³/MIN | 100 MM (4") | 12V - 12AMP | 245X233X232 MM | €384.62 | N | 1 |
| Z35515-0010EU | 35515-0010EU | 0253551511 | 3 M³/MIN | 75 MM (3") | 12V - 4,4 AMP | 127X140X172 MM | €267.91 | N |
4
10/10/2025
Alert The date is purely indicative |
