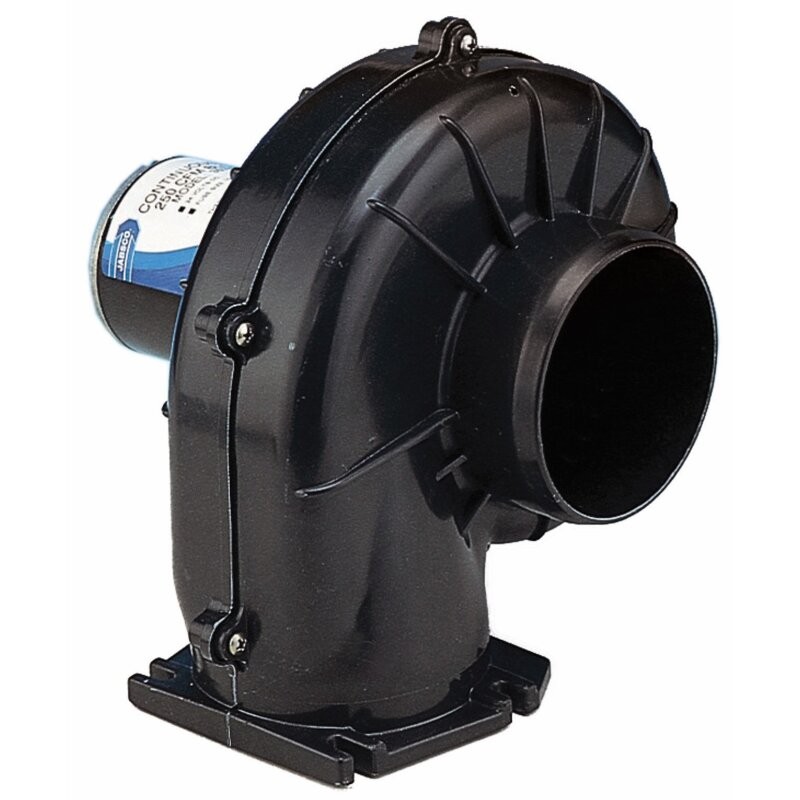

FLANGE-MOUNTED AIR EXTRACTORS HD
Art. Z35760-0092
Corrosion resistant and provide ventilation to bilges, engine compartments, kitchens and decks.
Capacity: 7,1 m³ / min (250 CFM) at open flow. Dimensionally stable and quiet Delrin rotors. Efficient air flow with high volume. Robust reinforced plastic housing. Made of corrosion-resistant materials. Complies with ISO 8846 MARINE and USCG 183.410: Ignition protection. Mounts in any position on any flat surface - the outlet flange is mounted directly on the bulkhead.
Connections: For 100 mm (4") ducts
Amperage approx. 11A; fuse 15A

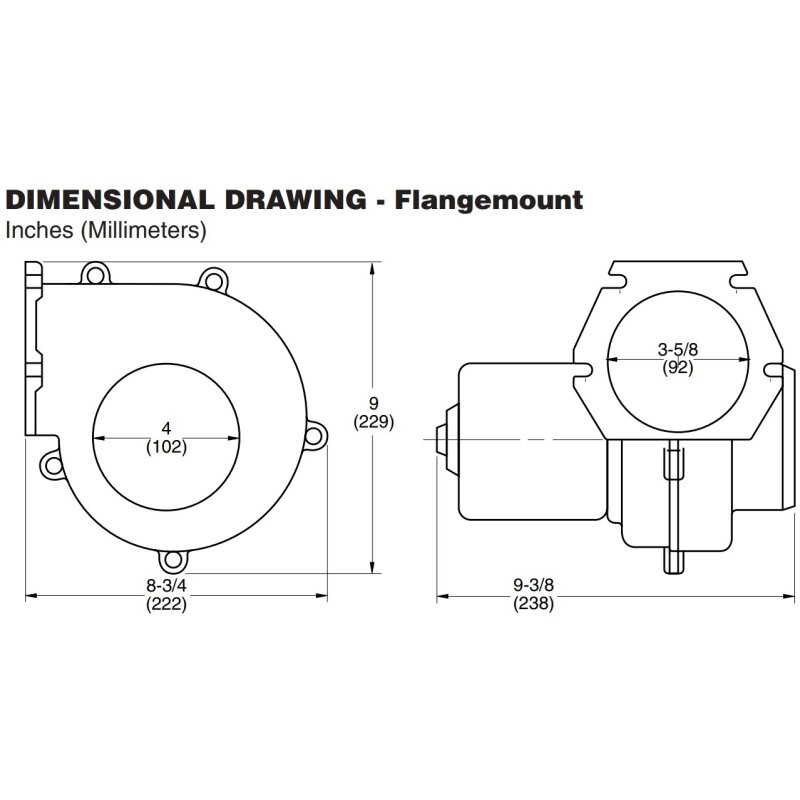

Dimensions: Height 22,9 cm / width 22,20 cm / length 23,8 cm
Capacity: 7,1 m³ / min (250 CFM) at open flow. Dimensionally stable and quiet Delrin rotors. Efficient air flow with high volume. Robust reinforced plastic housing. Made of corrosion-resistant materials. Complies with ISO 8846 MARINE and USCG 183.410: Ignition protection. Mounts in any position on any flat surface - the outlet flange is mounted directly on the bulkhead.
Connections: For 100 mm (4") ducts
Amperage approx. 11A; fuse 15A
Dimensions: Height 22,9 cm / width 22,20 cm / length 23,8 cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
| Z35760-0094 | 35760-0094 | 0253576024 | 7,1 M³/MIN | 100 MM (4") | 24V - 6 AMP | 229X222X238 MM | €689.81 | N | 1 |
| Z35760-0092 | 35760-0092 | 0253576012 | 7,1 M³/MIN | 100 MM (4") | 12V - 11 AMP | 229X222X238 MM | €689.81 | N | 1 |
Forniture nautiche italiane sells only to retailers and installers of the sector
How to became reseller?
