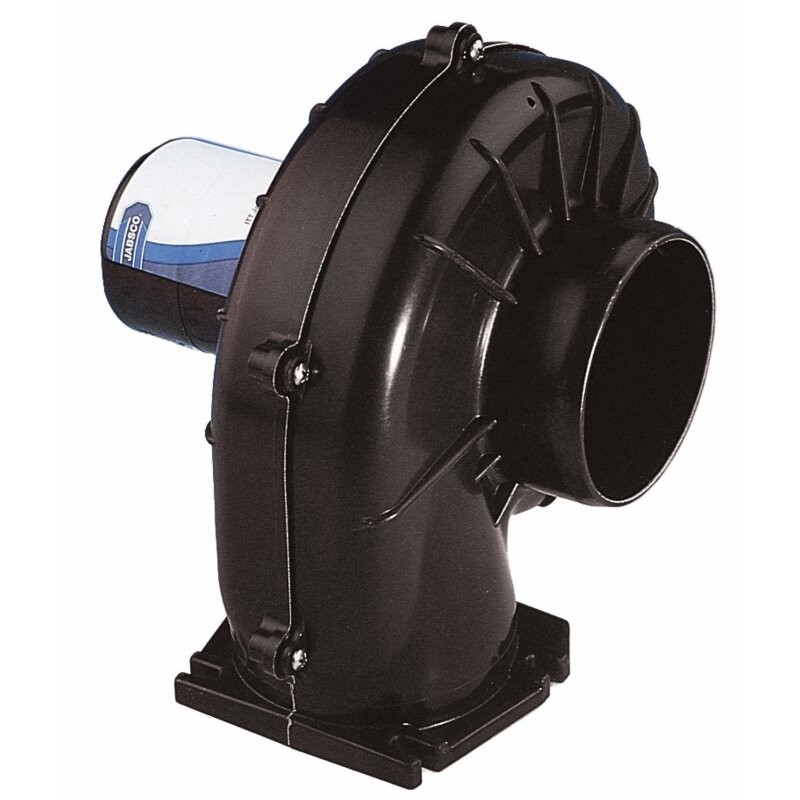

FLANGE-MOUNTED EXTRACTORS
Art. Z34739-0010
Corrosion resistant and provide ventilation to bilges, engine compartments, kitchens and decks.
Capacity: 4.2 m³ / min (150 CFM) at open flow. Dimensionally stable and quiet Delrin rotors. Efficient air flow with high volume. Robust reinforced plastic housing. Made of corrosion-resistant materials. Complies with ISO 8846 MARINE and USCG 183.410: Ignition protection. Mounts in any position on any flat surface - the outlet flange is mounted directly on the bulkhead.
Connections: For 75 mm (3") ducts
Amperage approx. 6.5A; fuse 10A
Dimensions: Height 17.1 cm / width 20.0 cm / length 20.0 cm
Capacity: 4.2 m³ / min (150 CFM) at open flow. Dimensionally stable and quiet Delrin rotors. Efficient air flow with high volume. Robust reinforced plastic housing. Made of corrosion-resistant materials. Complies with ISO 8846 MARINE and USCG 183.410: Ignition protection. Mounts in any position on any flat surface - the outlet flange is mounted directly on the bulkhead.
Connections: For 75 mm (3") ducts
Amperage approx. 6.5A; fuse 10A
Dimensions: Height 17.1 cm / width 20.0 cm / length 20.0 cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
| Z34739-0010 | 34739-0010 | 0253473910 | 4,2 M³/MIN | 75 MM (3") | 12V - 6,5 AMP | 170X200X200 MM | €382.52 | N | 1 |
| Z34739-0020EU | 34739-0020EU | 0253473921 | 4,2 M³/MIN | 75 MM (3") | 24V - 3,3 AMP | 170X200X200 MM | €406.80 | N | 1 |
| Z35115-0020 | 35115-0020 | 0253511520 | 3 M³/MIN | 75 MM (3") | 12V - 4,4 AMP | 121X140X178 MM | €232.63 | N | 4 |
| Z35400-0000 | 35400-0000 | 0253540000 | 7,1 M³/MIN | 100 MM (4") | 12V - 12 AMP | 229X222X222 MM | €467.57 | N | 1 |
