BOW TRUSTER BTQ 125-40
Art. 0390015

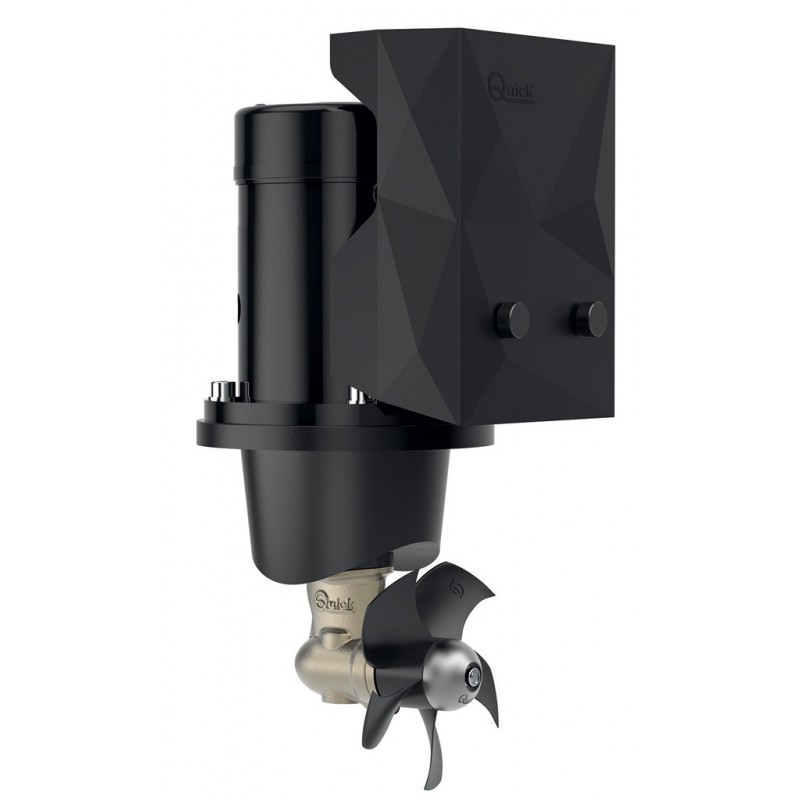

No electronic components are fitted on the Quick BTQ 125 thruster motor: all the protections (thrust reversal with programmed delay, timed automatic shutoff, thermal protection against motor overheating) are managed by the microprocessor in the control panels, so the motor sitting in the water stays a purely mechanical part, simpler to maintain over time.
Propeller and solenoid protection casing in tough composite material, bronze gearbox, standard zinc anode independent of the gearbox and easy to replace, flexible shock-absorbing coupling.
Suited to boats from 7 a 9 metres.
Technical specifications:
- Ø125mm tunnel
- 12V voltage
- 2,2 kW power
- 40 kg thrust
- 325A fuse
- 18,5 kg weight
- Bronze gearbox, independently replaceable zinc anode
- Protection electronics integrated in the control panel, not on the motor
Propeller and solenoid protection casing in tough composite material, bronze gearbox, standard zinc anode independent of the gearbox and easy to replace, flexible shock-absorbing coupling.
Suited to boats from 7 a 9 metres.
Technical specifications:
- Ø125mm tunnel
- 12V voltage
- 2,2 kW power
- 40 kg thrust
- 325A fuse
- 18,5 kg weight
- Bronze gearbox, independently replaceable zinc anode
- Protection electronics integrated in the control panel, not on the motor
Available
Availability over 7d

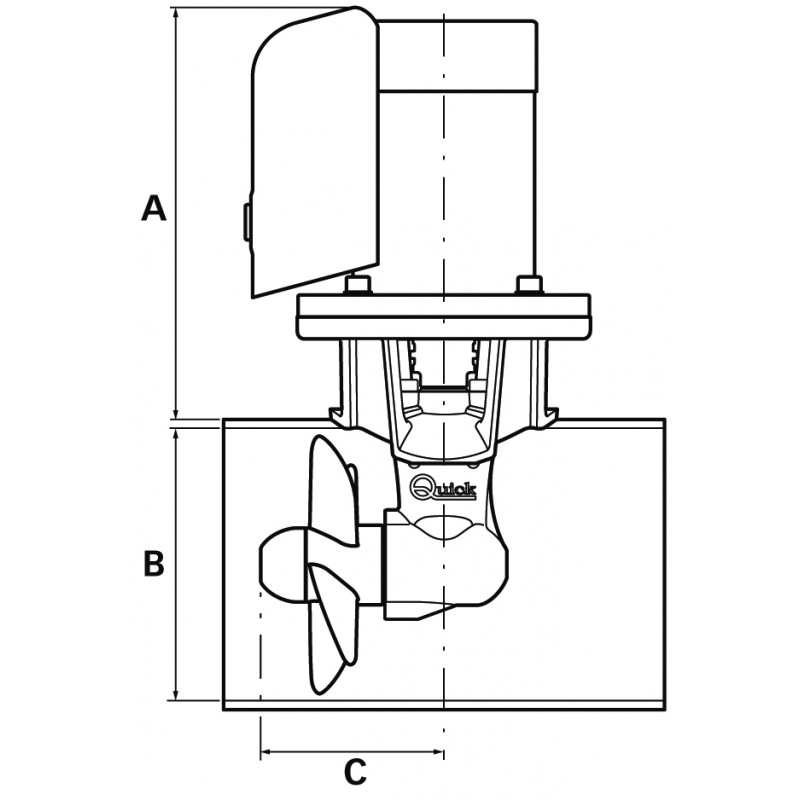

| Product | Model | Number | Ø | POWER | Boat Length | A | B | C | Weight | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0390015
|
BTQ125 | PROPELLER 1 | TUNNEL 125 MM | 2,2 KW - 12 VOLT | 7-9 MT | 258 MM | 125 MM | 84 MM | 10,8 KG | €2,045.57 | N | 1 |
