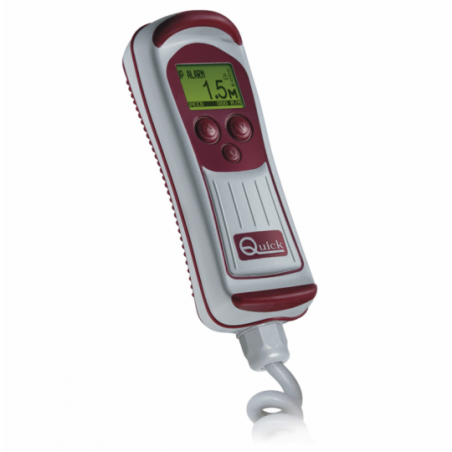

HAND-HELD CHAIN COUNTER
Art. 0307845
The Quick chain counter pushbutton panel with LCD display gives full control of the windlass and the chain paid out from a single panel: the backlit graphic display shows chain movement speed, metres or feet paid out and supply voltage, while the built-in LED torch helps working at the bow even in the dark. Readouts appear in 5 languages, with a built-in clock and calendar.
The automatic lowering function pays out the chain on its own down to the set depth, the raising alarm signals when the anchor is about to reach the gypsy, and the key lock prevents accidental operation. It also handles capstan work, not just anchoring, and communicates via CAN BUS with the rest of the onboard electrical system.
IP67 sealed, complete with chain counter sensor.
Technical specifications:
- Backlit graphic LCD display, 5 languages
- Built-in LED torch
- Automatic lowering, raising alarm, key lock
- Windlass management with automatic free fall, usable for capstan work too
- Displays chain speed, metres/feet paid out, supply voltage
- Clock and calendar
- CAN BUS interface
- IP67 protection rating
- 12/24V power supply
- Dimensions 165 x 62 x 50 mm, weight 850 g
- Complete with chain counter sensor
The automatic lowering function pays out the chain on its own down to the set depth, the raising alarm signals when the anchor is about to reach the gypsy, and the key lock prevents accidental operation. It also handles capstan work, not just anchoring, and communicates via CAN BUS with the rest of the onboard electrical system.
IP67 sealed, complete with chain counter sensor.
Technical specifications:
- Backlit graphic LCD display, 5 languages
- Built-in LED torch
- Automatic lowering, raising alarm, key lock
- Windlass management with automatic free fall, usable for capstan work too
- Displays chain speed, metres/feet paid out, supply voltage
- Clock and calendar
- CAN BUS interface
- IP67 protection rating
- 12/24V power supply
- Dimensions 165 x 62 x 50 mm, weight 850 g
- Complete with chain counter sensor
Available
Availability over 7d
| Product | Model | Dimensions | Weight | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|
|
0307845
|
CHC 1103 | 165X62X50 MM | 850 G | €620.66 | N | 1 |
