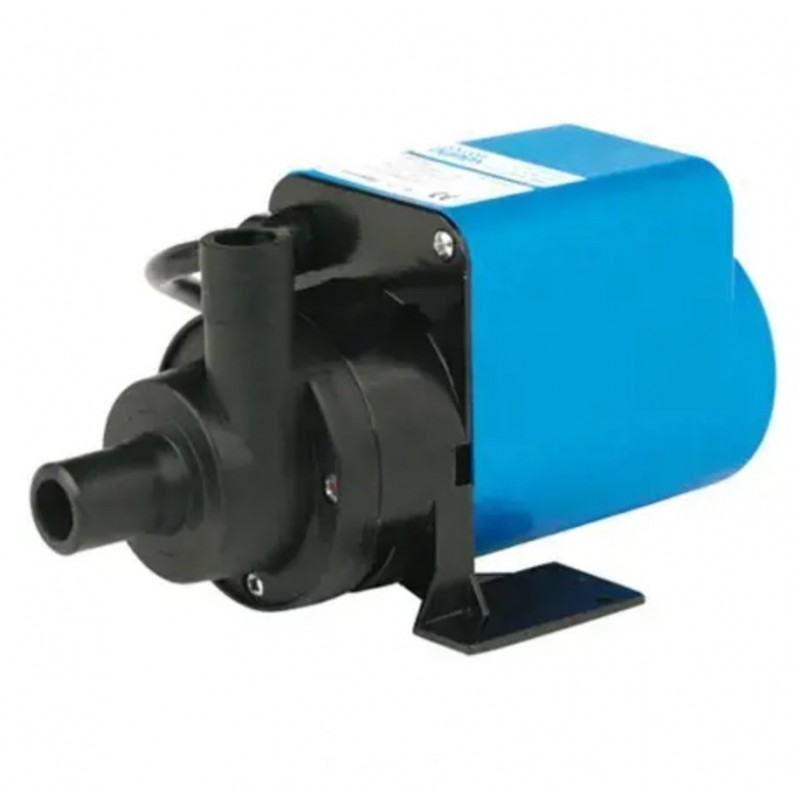

CENTRIFUGAL PUMP
Art. Z123928
Magnetic drive centrifugal pump without seal 230 V/1/50-60 Hz
Made of chemical-resistant, completely non-metallic thermoplastics
Magnetic drive provides an energy-efficient heat shield to minimise heat transfer to the pumped liquid
Connections: 21 mm plain ports
Dimensions: 98 mm high, 196 mm long, 113 mm wide
Motor power: 0.01 (kW)
Output: 50 Hz: Flow rate up to 35 litres/min (7.7 gallons/min) at free flow. Maximum head of 2.2 metres (7.2 feet). 60 Hz: Flow rate up to 33 litres/min (7.2 gallons/min) at free flow. Maximum head of 3.3 metres (10.8 feet).
Weight: 2.3 (kg)
Made of chemical-resistant, completely non-metallic thermoplastics
Magnetic drive provides an energy-efficient heat shield to minimise heat transfer to the pumped liquid
Connections: 21 mm plain ports
Dimensions: 98 mm high, 196 mm long, 113 mm wide
Motor power: 0.01 (kW)
Output: 50 Hz: Flow rate up to 35 litres/min (7.7 gallons/min) at free flow. Maximum head of 2.2 metres (7.2 feet). 60 Hz: Flow rate up to 33 litres/min (7.2 gallons/min) at free flow. Maximum head of 3.3 metres (10.8 feet).
Weight: 2.3 (kg)
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Volt | Flow | Lift | Inlet Ø | Outlet Ø | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Z173901 | 173901 | 750NDP25-60 | 230 | 23 L/MIN | 3,8 MT | 21 MM | 16,5 MM | 101X185X113 MM | €492.68 | N | 4 on request |
| Z123928 | 123928 | 7500123928 | 230 | 35 L/MIN | 3,3 MT | 21 MM | 21 MM | 98X196X113 MM | €447.14 | N | 4 on request |
| Z133933 | 133933 | 7500133933 | 230 | 35 L/MIN | 3,3 MT | 1/2" | 1/2" | 98X196X113 MM | €459.55 | N | 4 on request |
