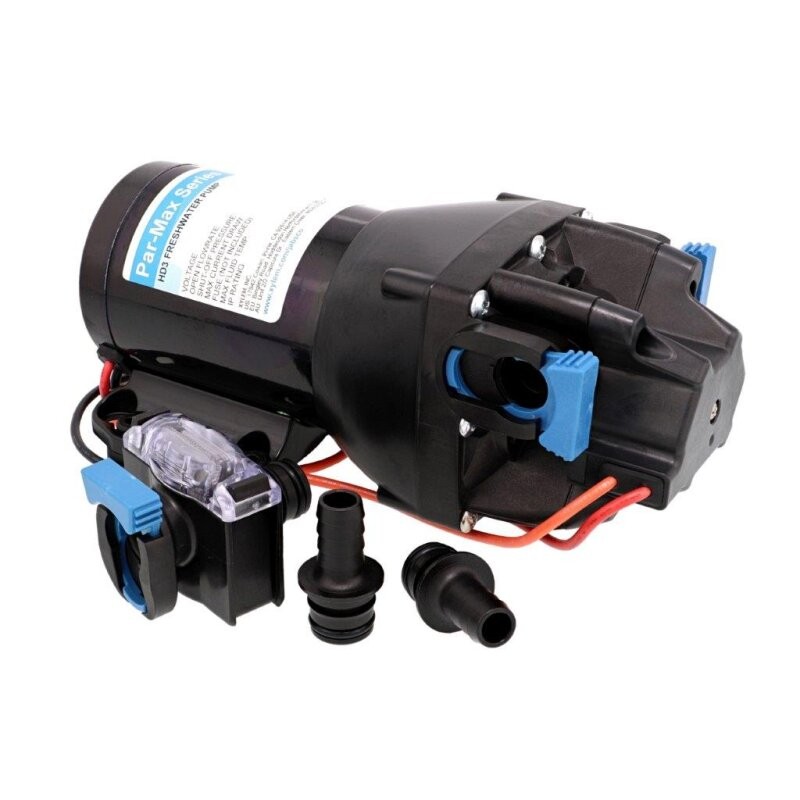

PAR MAX 3HD AUTOCLAVE PUMP
Art. ZQ301J-115S-3A
The Jabsco Par Max Heavy Duty diaphragm pump is designed for high performance water pressure control.
Flow rate up to 11 litres/minute (3 GPM) at free discharge.
The pressure switch turns the pump on at approx. 1.4 bar (20 psi) and off at approx. 2.8 bar (40 psi).
Santoprene 5-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2,4m.
Can run dry without damage.
Equipped with a bypass for a smoother flow.
Included: 2 x 13mm (1/2") straight tube connectors and 1 x 40 MESH Mini Filter
Max. current draw 8A; fuse 15A

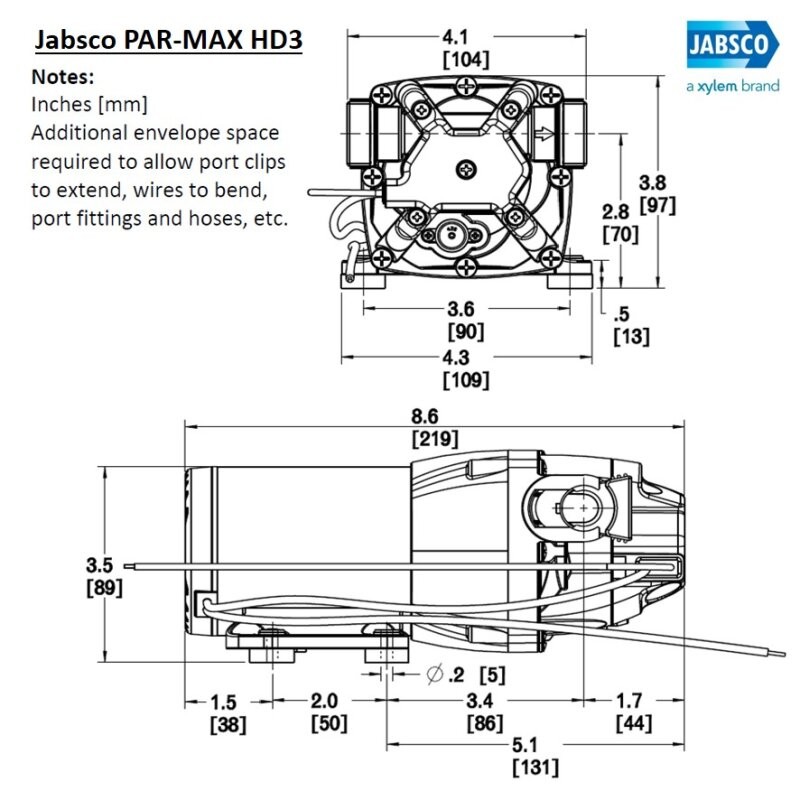

Dimensions: Height 9.7cm / Width 10.9cm (without connections) / Length 21.9cm
Flow rate up to 11 litres/minute (3 GPM) at free discharge.
The pressure switch turns the pump on at approx. 1.4 bar (20 psi) and off at approx. 2.8 bar (40 psi).
Santoprene 5-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2,4m.
Can run dry without damage.
Equipped with a bypass for a smoother flow.
Included: 2 x 13mm (1/2") straight tube connectors and 1 x 40 MESH Mini Filter
Max. current draw 8A; fuse 15A
Dimensions: Height 9.7cm / Width 10.9cm (without connections) / Length 21.9cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Pressure | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZQ301J-115S-3A | Q301J-115S-3A | 0223011512 | 11 L/MIN | 40 PSI | 2,4 M | 13 MM (1/2") | 12V - 8A | 97X109X219 MM | €258.25 | N | 1 |
