PAR MAX 5HD AUTOCLAVE PUMP
Art. ZP501J-115S-3A
The Jabsco Par Max Heavy Duty diaphragm pump is designed for high performance water pressure control.
Flow rate up to 19 litres/minute (5 GPM) at free discharge.
The pressure switch turns the pump on at approx. 1.4 bar (20 psi) and off at approx. 2.8 bar (40 psi).
Santoprene 5-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2,4m.
Can run dry without damage.
Equipped with a bypass for smoother flow.

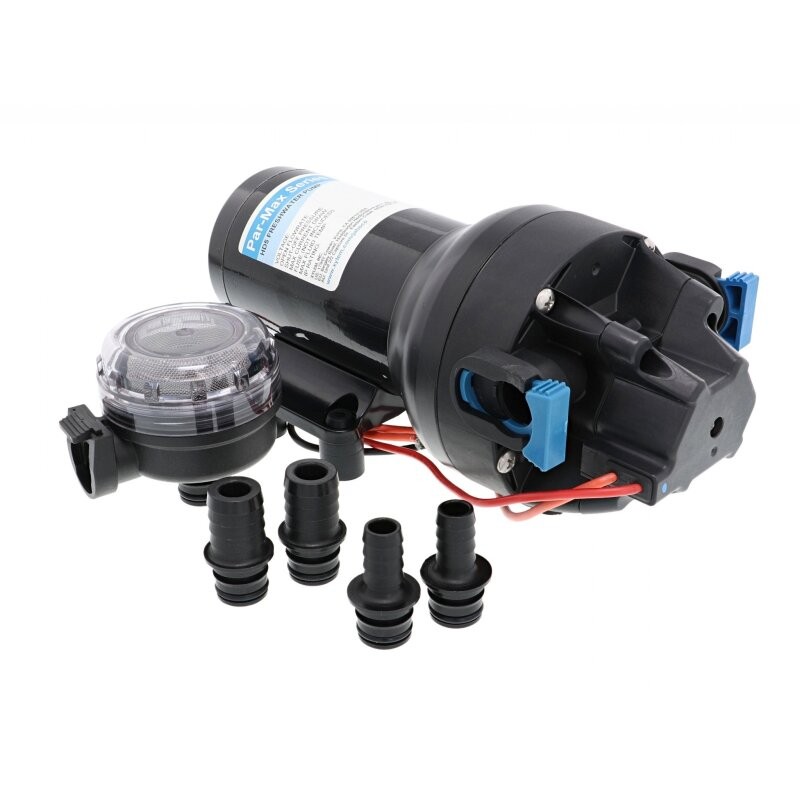

Included: 2 x 13mm (1/2") and 2 x 19mm (3/4") straight push-on connectors, plus 1 suction filter 40 MESH
Max. current draw 12A; fuse 20A

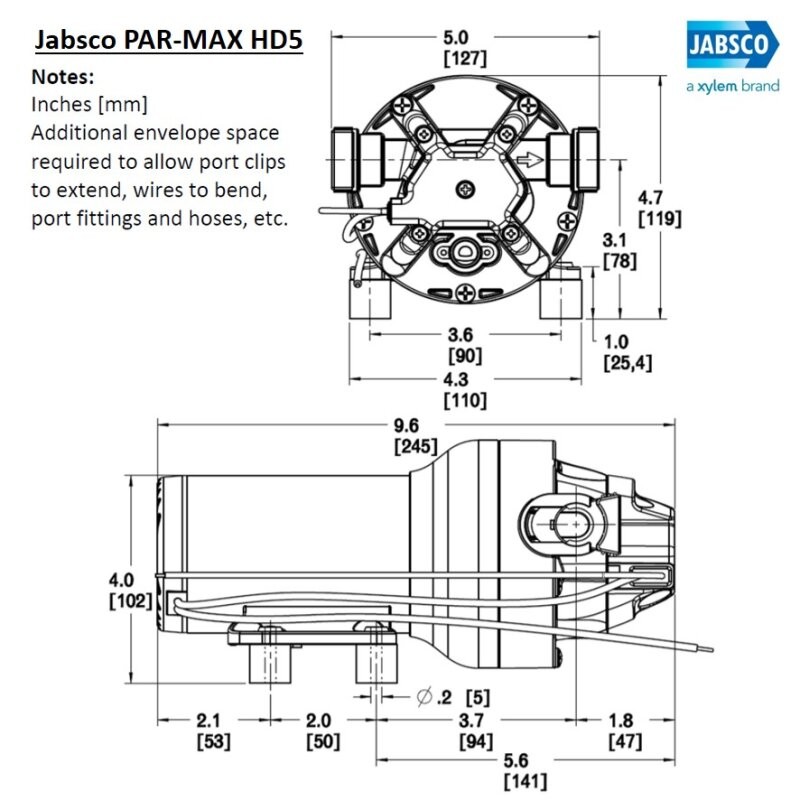

Dimensions: Height 11.9cm / Width 12.7cm (without connections) / Length 24.5cm
(ex codice FNI 1616586)
Flow rate up to 19 litres/minute (5 GPM) at free discharge.
The pressure switch turns the pump on at approx. 1.4 bar (20 psi) and off at approx. 2.8 bar (40 psi).
Santoprene 5-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2,4m.
Can run dry without damage.
Equipped with a bypass for smoother flow.
Included: 2 x 13mm (1/2") and 2 x 19mm (3/4") straight push-on connectors, plus 1 suction filter 40 MESH
Max. current draw 12A; fuse 20A
Dimensions: Height 11.9cm / Width 12.7cm (without connections) / Length 24.5cm
(ex codice FNI 1616586)
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Pressure | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZP501J-118S-3A | P501J-118S-3A | 0225011812 | 19 L/MIN | 60 PSI | 2,4 M | 13 MM (1/2") - 19 MM (3/4") | 12V - 12A | 119X127X245 MM | €417.74 | N | 1 |
| ZP501J-115S-3A | P501J-115S-3A | 0225011512 | 19 L/MIN | 40 PSI | 2,4 M | 13 MM (1/2") - 19 MM (3/4") | 12V - 12A | 119X127X245 MM | €417.07 | N | 1 |
