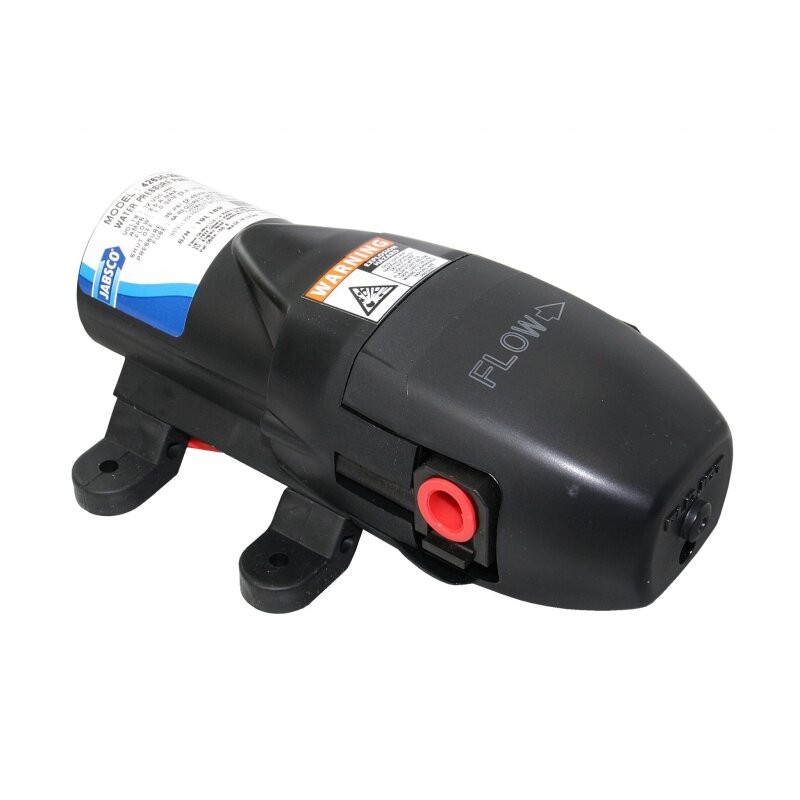

PAR MAX 1 AUTOCLAVE PUMP
Art. Z42630-3512-3C
Self-priming diaphragm pump designed for 12 V systems.
Maximum flow rate 3.8 litres/minute (1 GPM)
Self-priming up to a height of 1.2 m
Dry running capability.
Pressure switch shuts off at 2.4 bar (35 PSI).
Included: 9.5mm (3/8") hose connection and 13mm (1/2") hose adapter.
Max. current consumption 3.5A; fuse 4A

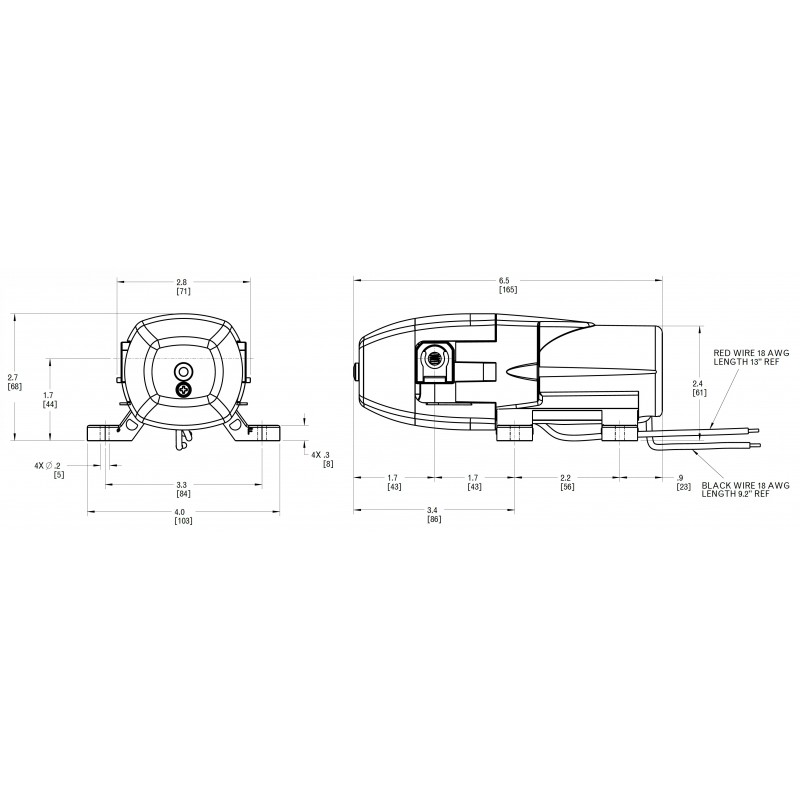

Dimensions: Height 6.8cm / Width 10.3cm / Length 16.5cm
Maximum flow rate 3.8 litres/minute (1 GPM)
Self-priming up to a height of 1.2 m
Dry running capability.
Pressure switch shuts off at 2.4 bar (35 PSI).
Included: 9.5mm (3/8") hose connection and 13mm (1/2") hose adapter.
Max. current consumption 3.5A; fuse 4A
Dimensions: Height 6.8cm / Width 10.3cm / Length 16.5cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Pressure | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Z42630-3512-3C | 42630-3512-3C | 0224263012 | 3,8 L/MIN | 35 PSI | 1,2 M | 9,5 MM (3/8") | 12V- 3,5A | 68X103X165 MM | €158.48 | N |
4
22/08/2025
Alert The date is purely indicative |
Forniture nautiche italiane sells only to retailers and installers of the sector
How to became reseller?
