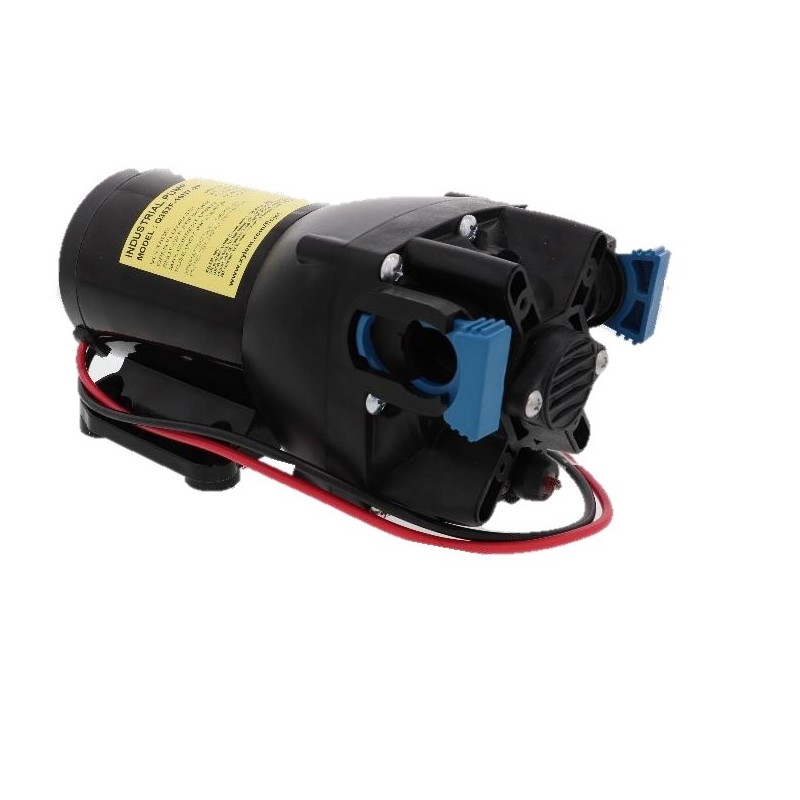

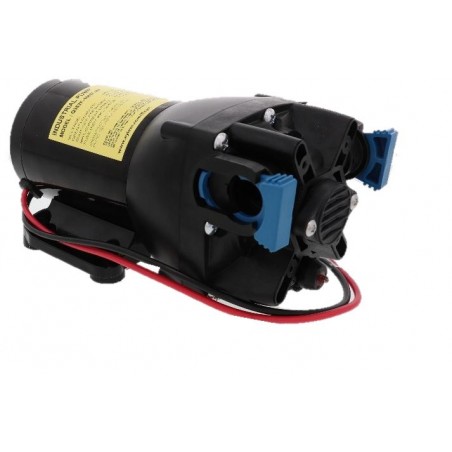

VERSIJET DIAPHRAGM PUMP
Art. ZQ352F-16N7-2P
This pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing and more. The fibreglass-reinforced polypropylene hose is corrosion resistant. Viton seals and Santoprene diaphragm ensure chemical and corrosion resistance. It is equipped with quick connect fittings and includes two 1/2" straight hose connectors.
Specifications:
Port fittings: 2 x 1/2" (13 mm) straight hose connectors
Open flow: 3.5 GPM open flow (13.2 LPM)
Pressure switch cut-off: no switch
Maximum working pressure: 50 PSI (3.4 BAR)
Maximum inlet pressure: 30 PSI (2.2 BAR)
Internal bypass: Yes
Fluid temperature range: 32° F - 140° F (0° C - 60° C)
Self-priming capability: Up to 8 feet (2.4 m) dry priming
Dry running capability: Yes
Maximum current draw: 9.5 Amps at 50 PSI (3.4 BAR)
Specifications:
Port fittings: 2 x 1/2" (13 mm) straight hose connectors
Open flow: 3.5 GPM open flow (13.2 LPM)
Pressure switch cut-off: no switch
Maximum working pressure: 50 PSI (3.4 BAR)
Maximum inlet pressure: 30 PSI (2.2 BAR)
Internal bypass: Yes
Fluid temperature range: 32° F - 140° F (0° C - 60° C)
Self-priming capability: Up to 8 feet (2.4 m) dry priming
Dry running capability: Yes
Maximum current draw: 9.5 Amps at 50 PSI (3.4 BAR)
Available
Availability over 7d
| Product | Original ref. | Flow | Self priming | Outlet Ø | Supply | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|
| ZQ352F-16N7-2P | Q352F-16N7-2P | 13 L/MIN | 2,4 MT | 13 MM (1/2") | 24V | €512.40 | N | 1 |
