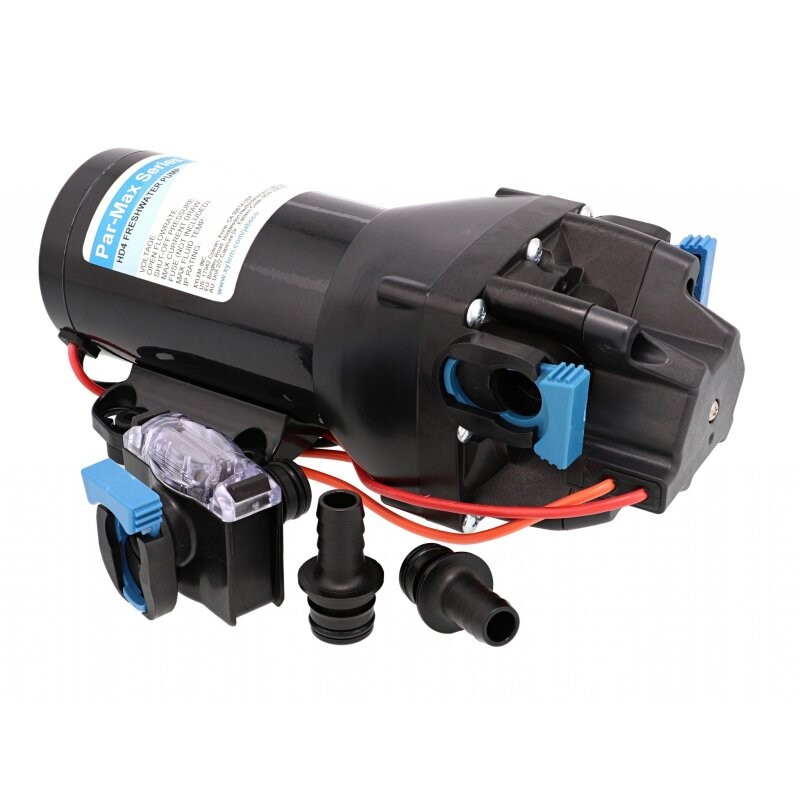

PAR MAX 4HD AUTOCLAVE PUMP
Art. ZQ401J-112S-3A
The Jabsco Par Max Heavy Duty diaphragm pump is designed for high performance water pressure control.
Flow rate up to 15 litres/minute (4 GPM) at free discharge.
The pressure switch turns the pump on at approx. 0.7 bar (10 psi) and off at approx. 1.7 bar (25 psi).
Santoprene 4-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2,4 m.
Can run dry without damage.
Equipped with a bypass for a smoother flow.
Included: 2 x 13mm (1/2") straight tube connectors and 1 x 40 MESH Mini Filter
Max. current draw 8A; fuse 15A

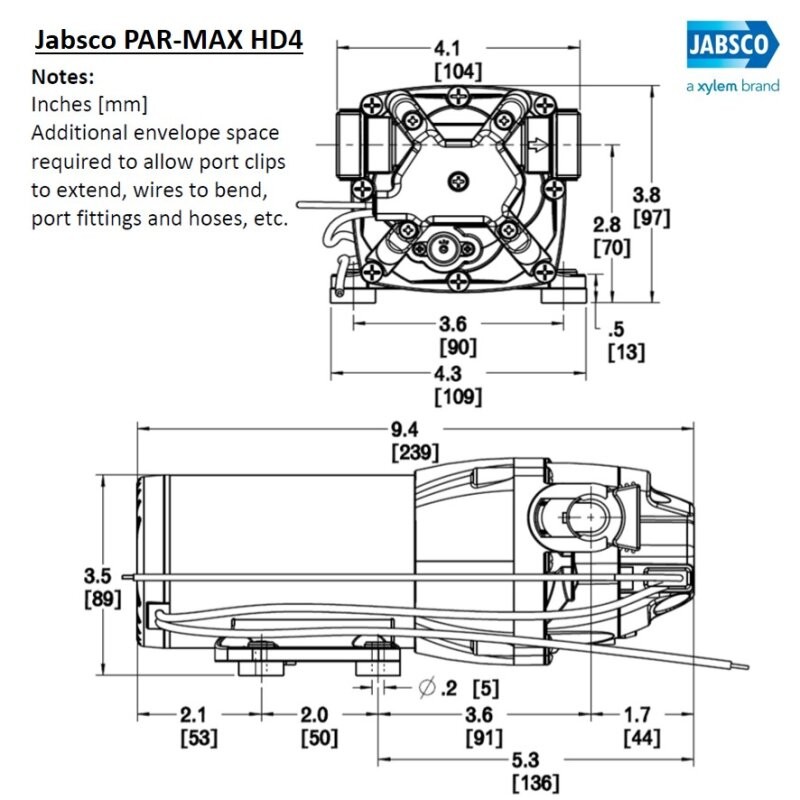

Dimensions: Height 9.7cm / Width 10.4cm (without connections) / Length 23.9cm
Flow rate up to 15 litres/minute (4 GPM) at free discharge.
The pressure switch turns the pump on at approx. 0.7 bar (10 psi) and off at approx. 1.7 bar (25 psi).
Santoprene 4-chamber diaphragm and EPDM valves.
Self-priming up to a height of 2,4 m.
Can run dry without damage.
Equipped with a bypass for a smoother flow.
Included: 2 x 13mm (1/2") straight tube connectors and 1 x 40 MESH Mini Filter
Max. current draw 8A; fuse 15A
Dimensions: Height 9.7cm / Width 10.4cm (without connections) / Length 23.9cm
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Flow | Pressure | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZQ401J-112S-3A | Q401J-112S-3A | 0224011212 | 15 L/MIN | 25 PSI | 2,4 M | 13 MM (1/2") | 12V - 8A | 97X104X239 MM | €288.01 | N | 1 |
| ZQ402J-112S-3A | Q402J-112S-3A | 0224021224 | 15 L/MIN | 25 PSI | 2,4 M | 13 MM (1/2") | 24V - 4A | 97X104X239 MM | €491.65 | N | 1 |
| ZQ401J-115S-3A | Q401J-115S-3A | 0224011512 | 15 L/MIN | 40 PSI | 2,4 M | 13 MM (1/2") | 12V - 8A | 97X104X239 MM | €281.10 | N | 1 |
| ZQ402J-115S-3A | Q402J-115S-3A | 0224021524 | 15 L/MIN | 40 PSI | 2,4 M | 13 MM (1/2") | 24V - 4A | 97X104X239 MM | €304.33 | N | 1 |
