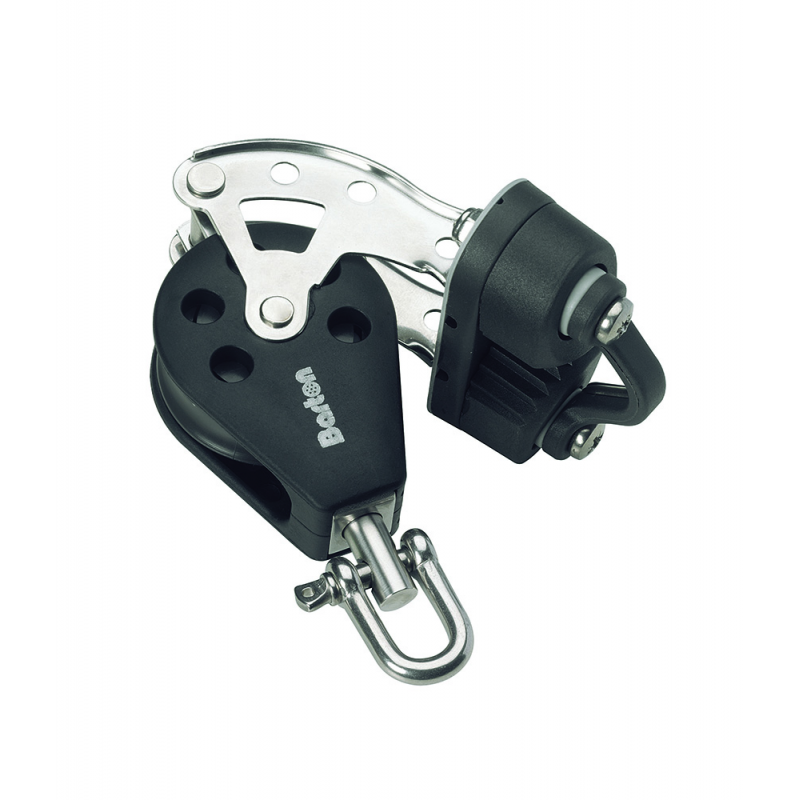

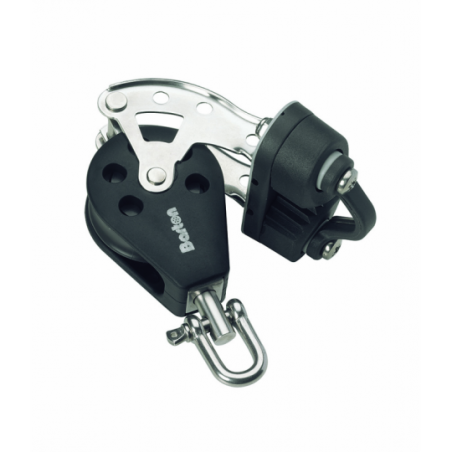

SINGLE BLOCK - SWIVEL + BECKET + CAM
Art. 7802531
The Barton block with a single sheave is built so that the built-in cam locks the line off on its own once trimmed, without needing a separate clutch as well; the swivel eye rotates to align itself with the direction of pull, stopping the line from twisting under load.
Body in corrosion-resistant marine materials, rated for a 370 kg working load and a 740 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 8 mm
- Maximum working load 370 kg
- Breaking load 740 kg
- Sheave dimensions 35 x 12 mm
- Length 100 mm
Body in corrosion-resistant marine materials, rated for a 370 kg working load and a 740 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 8 mm
- Maximum working load 370 kg
- Breaking load 740 kg
- Sheave dimensions 35 x 12 mm
- Length 100 mm
Available
Availability over 7d
| Product | Ø Wire | Model | TYPE | Ø | Working load | Breaking Load | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
7802531
|
MAX 8 MM | SINGLE | SWIVEL + BECKET + CAM | PULLEY 35 MM X H 12 MM | 370 KG | 740 KG | €114.41 | N | 1 |
