SINGLE CHEEK BLOCK
Art. 7802160

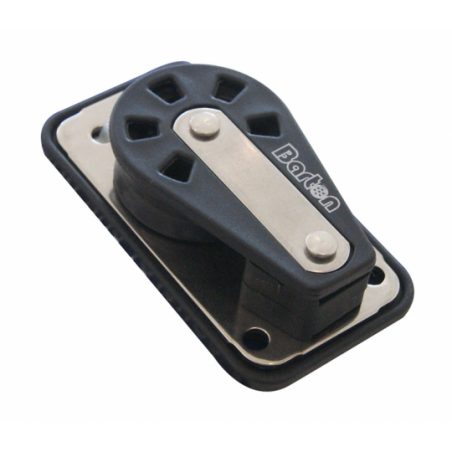

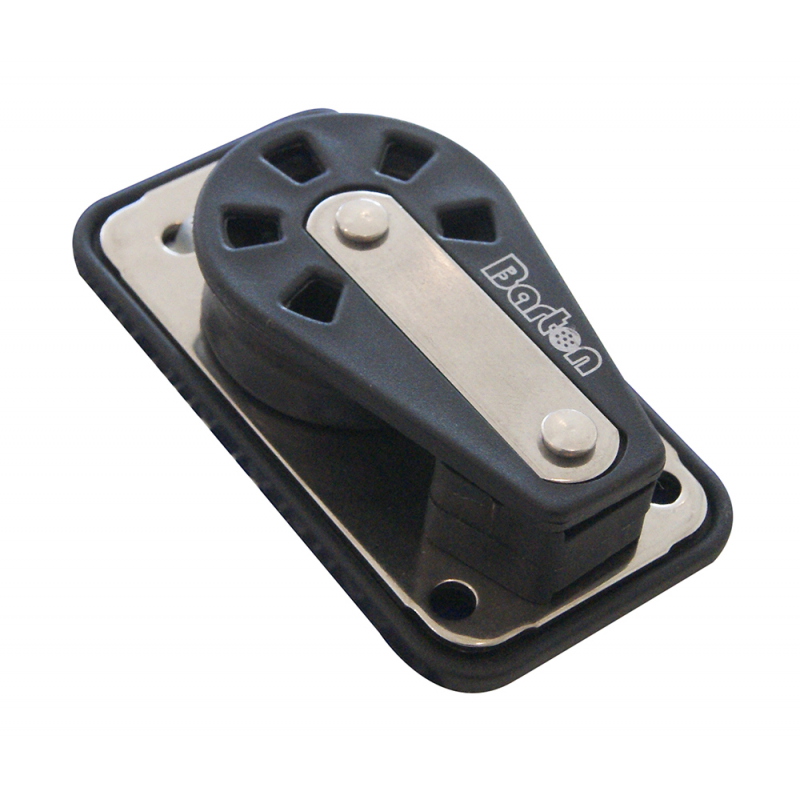

The Barton block with a single sheave is built so that the flat mounting plate screws straight onto a flat surface, with no need for an eyebolt or another protruding attachment point.
Body in corrosion-resistant marine materials, rated for a 370 kg working load and a 740 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 8 mm
- Maximum working load 370 kg
- Breaking load 740 kg

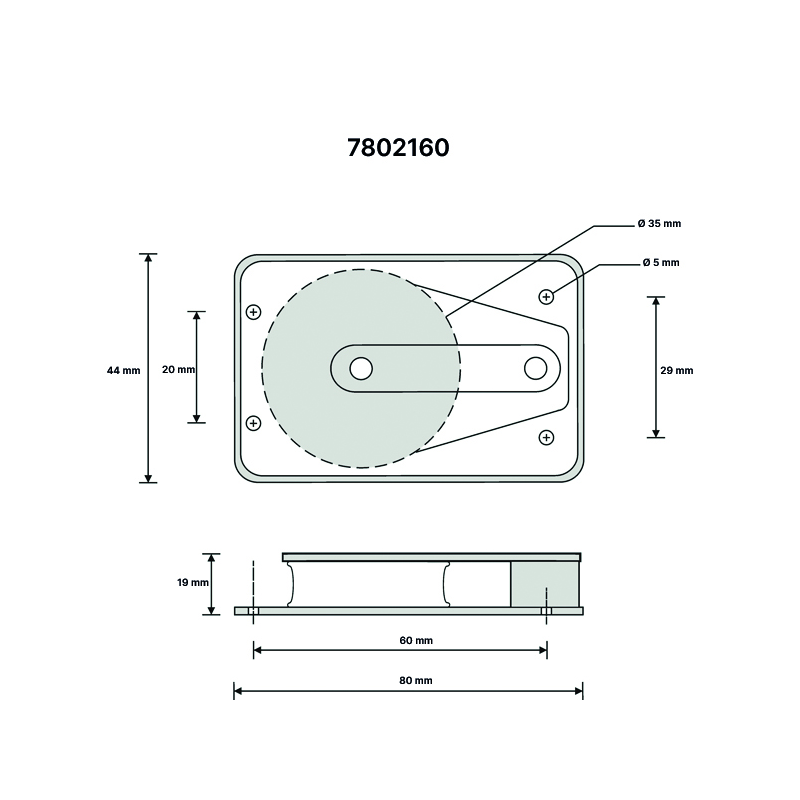

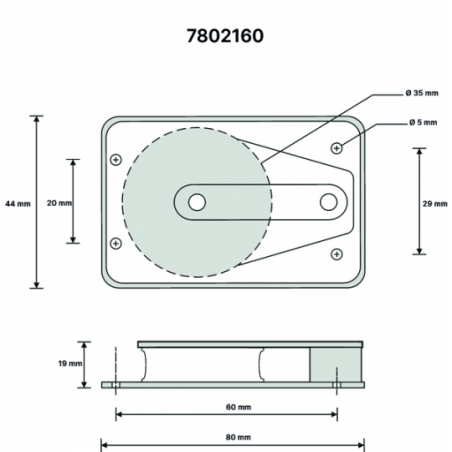

- Sheave dimensions 35 x 12 mm
- Length 80 mm
Body in corrosion-resistant marine materials, rated for a 370 kg working load and a 740 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 8 mm
- Maximum working load 370 kg
- Breaking load 740 kg
- Sheave dimensions 35 x 12 mm
- Length 80 mm
Available
Availability over 7d
| Product | Ø Wire | Model | TYPE | Ø | Working load | Breaking Load | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
|
7802160
|
MAX 8 MM | SINGLE | LIGHTWEIGHT CHEEK BLOCK | PULLEY 35 MM X H 12 MM | 370 KG | 740 KG | €35.20 | N | 1 |
