STAINLESS STEEL D SHACKLE

Name: STAINLESS STEEL D SHACKLE
Brand: Plastimo
SKU: P209049
Price: 22.68 EUR
Availability: InStock

Art. P209049

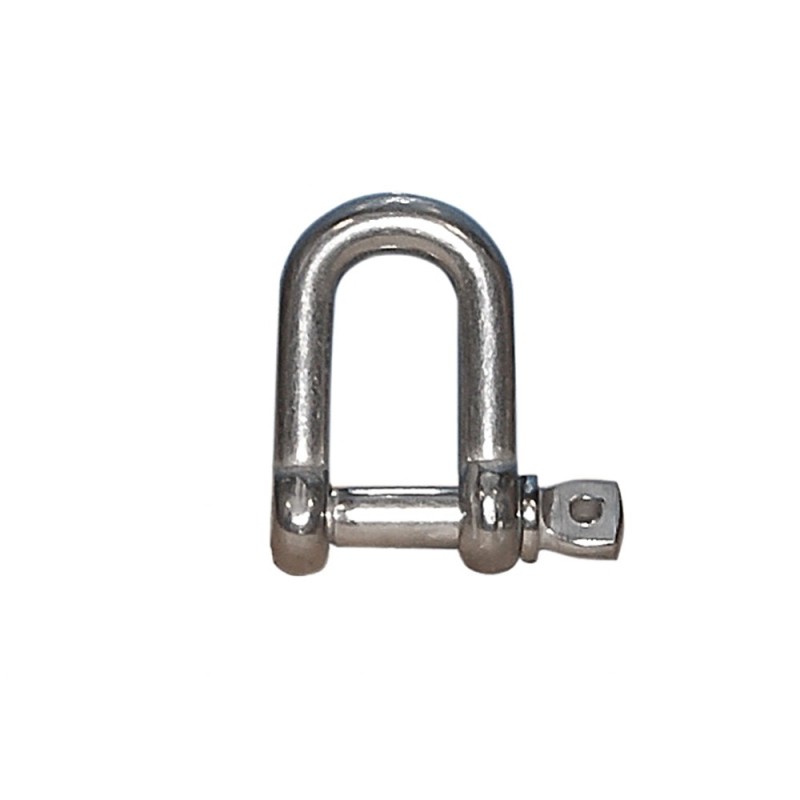

Plastimo's D-shackle, in AISI 316 (A4) stainless steel: the body is narrower and straighter than a bow shackle's, designed for an in-line connection without the side play of the pear shape. ISO9001:2015 certified, it's the most common choice for single, permanent connections between lines, stays, sheets and deck fittings.

Technical specifications:
- AISI 316 (A4) stainless steel
- D shape: narrow, straight body for an in-line connection
- Threaded pin
- ISO9001:2015 certified
- Work load stated by Plastimo for this diameter (Ø 16 mm): 2492 kg

Send by email

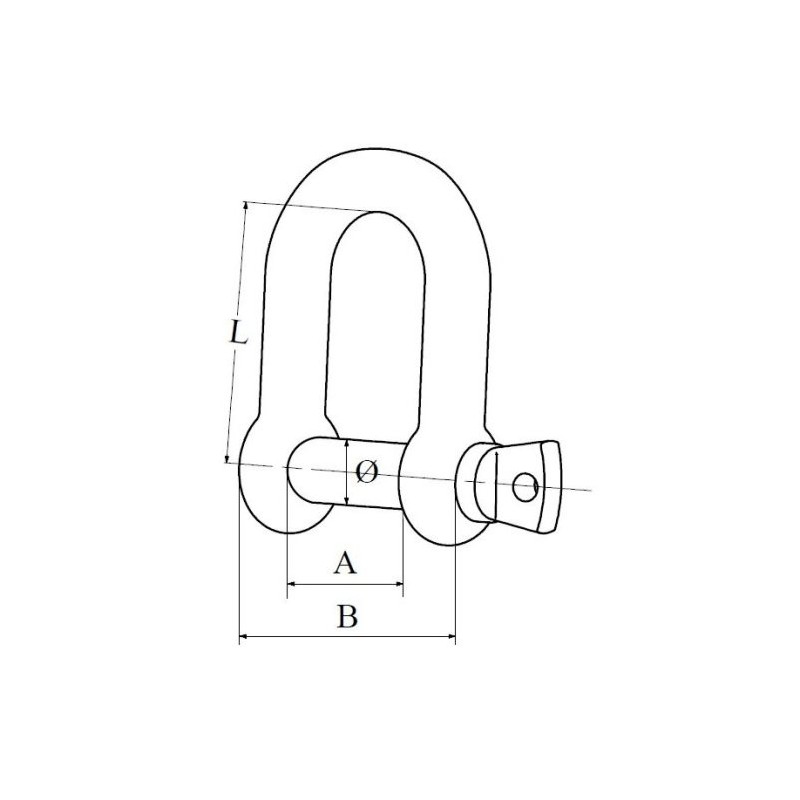

Product	Ø	A	B	L	Working load	Pack of pieces	Price list €(vat incl.)	Unit	Avail.
P209052	12 MM	24 MM	48 MM	48 MM	1401 KG	10 PCS	€79.45	CF	1
P209054	10 MM	20 MM	40 MM	40 MM	952 KG	10 PCS	€48.51	CF	1
P209055	8 MM	16 MM	32 MM	32 MM	605 KG		€4.10	N	1
P209056	8 MM	16 MM	32 MM	32 MM	605 KG	10 PCS	€27.24	CF	1
P209053	10 MM	20 MM	40 MM	40 MM	952 KG		€6.60	N	1
P209057	6 MM	12 MM	24 MM	24 MM	337 KG	2 PCS	€4.34	CF	1
P209058	6 MM	12 MM	24 MM	24 MM	337 KG	10 PCS	€16.62	CF	1
P209059	5 MM	10 MM	20 MM	20 MM	232 KG	2 PCS	€3.73	CF	1
P209060	5 MM	10 MM	20 MM	20 MM	232 KG	10 PCS	€14.01	CF	1
P209061	4 MM	8 MM	16 MM	16 MM	148 KG	4 PCS	€6.28	CF	1
P209051	12 MM	24 MM	48 MM	48 MM	1401 KG		€10.22	N	1
P209062	4 MM	8 MM	16 MM	16 MM	148 KG	20 PCS	€25.75	CF	1
P209049	16 MM	32 MM	64 MM	64 MM	2492 KG		€22.68	N	1
P209050	16 MM	32 MM	64 MM	64 MM	2492 KG	10 PCS	€185.51	CF	1
