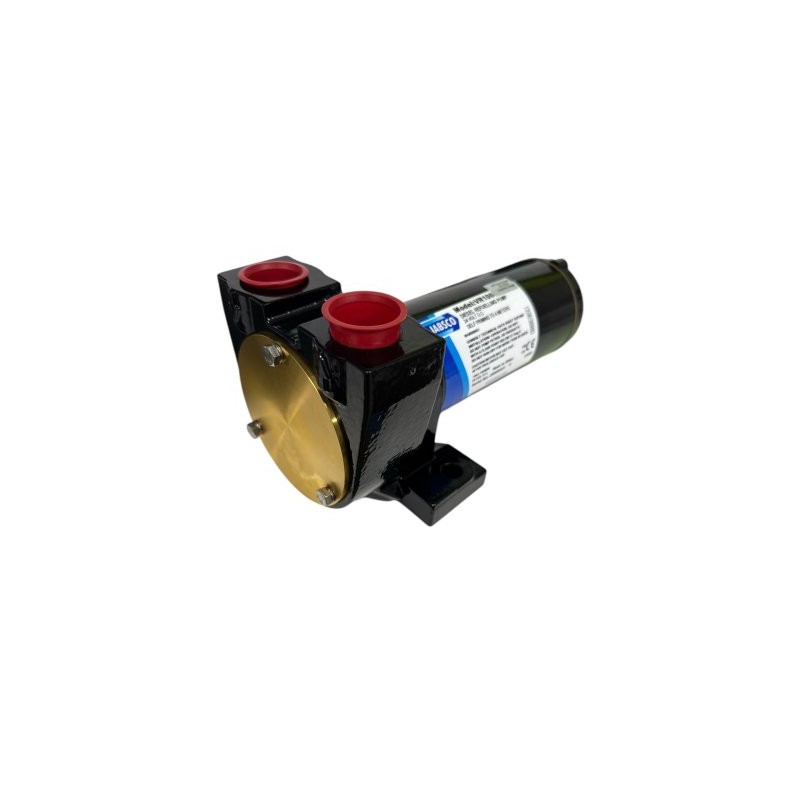

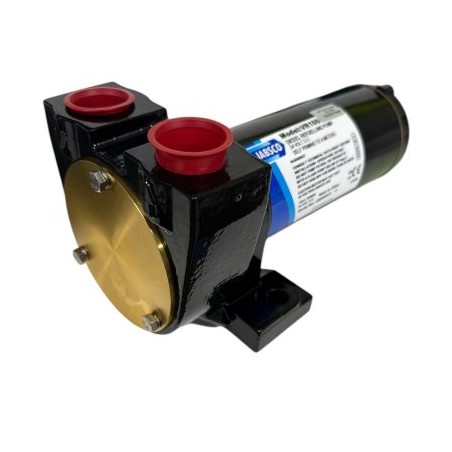

FUEL TRANSFER PUMP
Art. ZVR100-B003
Diesel transfer pump suitable for continuous operation with a flow rate of 50 litres/minute and 3/4" BSP.
Designed for diesel, paraffin, hydraulic oil.
Not suitable for petrol, solvents, thinner or other flammable liquids (risk of explosion).
Self-priming up to 3m.
Temperature range: -30°C to +50°C
Connections: Internal thread for 1" BSP fittings (parallel) (min. pipe inner diameter 32mm)
Current consumption 10A at 3m height; maximum current consumption 24A
Dimensions: Height 12.7 cm (without accessories) / width 14.5 cm (feet) / length 26.4cm
Designed for diesel, paraffin, hydraulic oil.
Not suitable for petrol, solvents, thinner or other flammable liquids (risk of explosion).
Self-priming up to 3m.
Temperature range: -30°C to +50°C
Connections: Internal thread for 1" BSP fittings (parallel) (min. pipe inner diameter 32mm)
Current consumption 10A at 3m height; maximum current consumption 24A
Dimensions: Height 12.7 cm (without accessories) / width 14.5 cm (feet) / length 26.4cm
Available
Availability over 7d
| Product | Jabsco Italy Code | Original ref. | Flow | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|
| ZVR100-B003 | 600VR10003 | VR100-B003 | 100 L/MIN | 4 M | 1" BSP | 24V - 10A | 127X145X264 MM | €1,158.95 | N | 4 |
