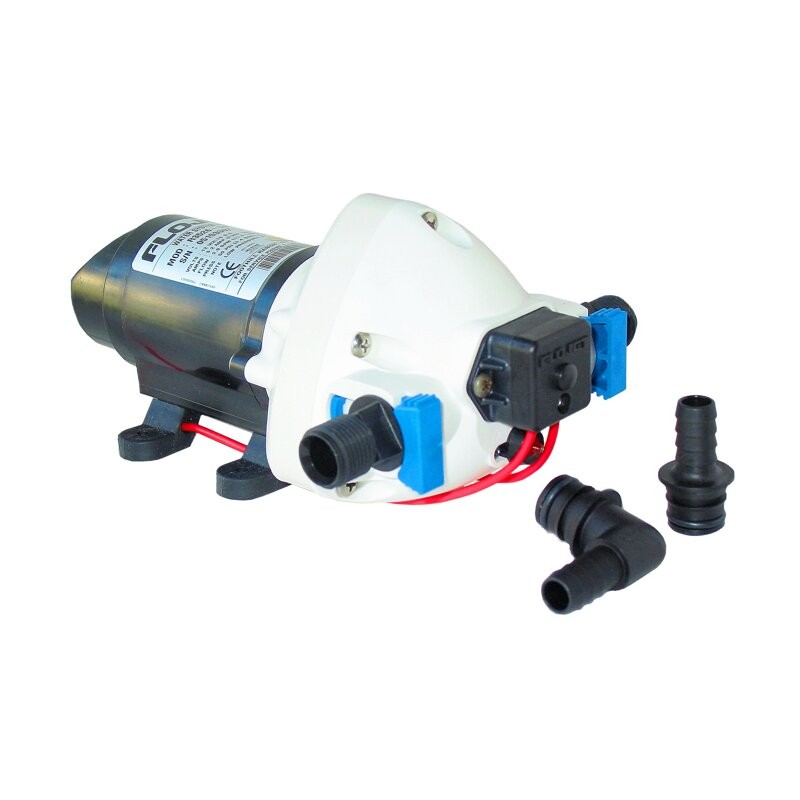

TRIPLEX AUTOCLAVE PUMP
Art. ZR3426144D
Pressure pump for water, with a flow rate of up to 11 litres/minute (3 GPM) at free discharge.
The pressure switch switches the pump on at approx. 1 bar (15 psi) and off at approx. 1.7 bar (25 psi).
3-chamber Santoprene diaphragm and EPDM valves.
Self-priming up to a height of 1.8m.
Can run dry without damage.
Equipped with a bypass for smoother flow.
Included: push-in connectors 2 x 1/2‘ QEST male straight thread, 1 x 13 mm (1/2’) 90° hose connector and 1 x 13 mm (1/2") straight hose connector.
Current consumption max. 4.4A; fuse 10A

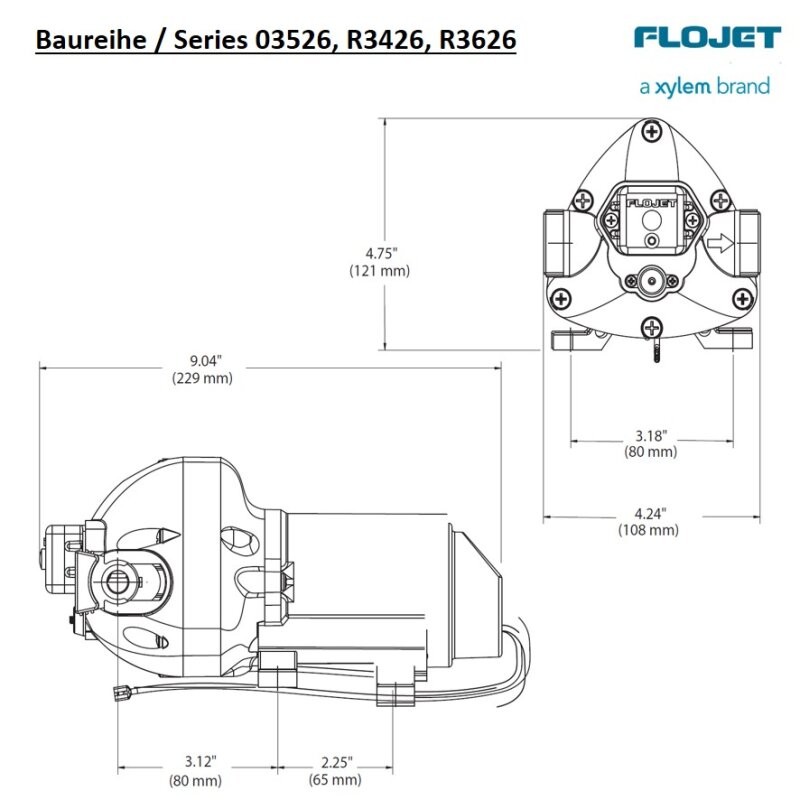

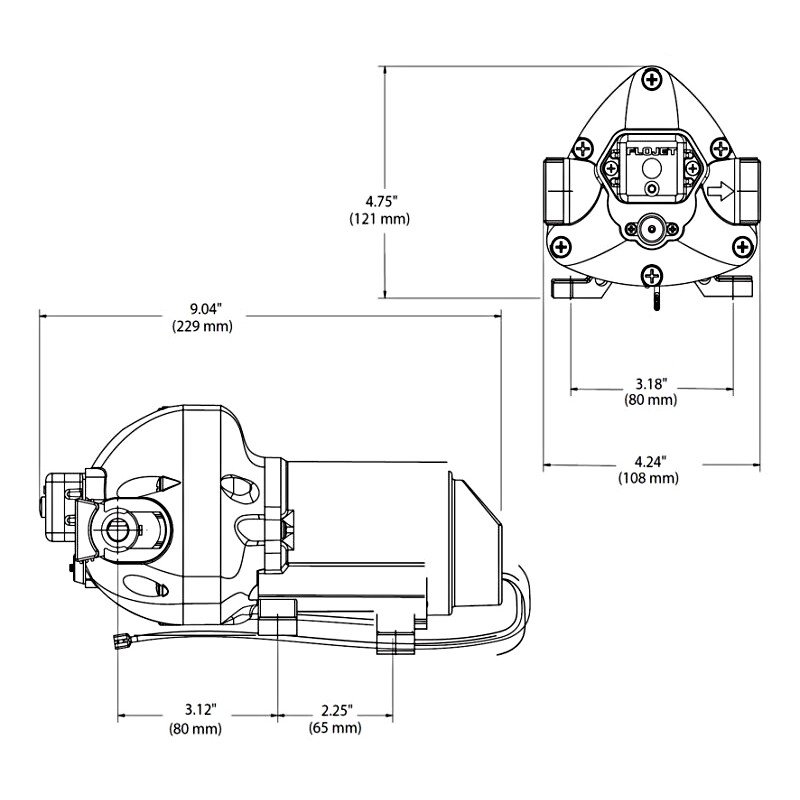

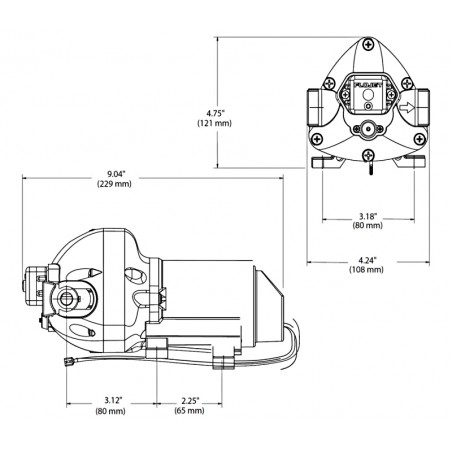

Dimensions: Height 12.1cm / Width 10.8cm (without connections) / Length 22.9cm
(ex codice FNI 1635260)
The pressure switch switches the pump on at approx. 1 bar (15 psi) and off at approx. 1.7 bar (25 psi).
3-chamber Santoprene diaphragm and EPDM valves.
Self-priming up to a height of 1.8m.
Can run dry without damage.
Equipped with a bypass for smoother flow.
Included: push-in connectors 2 x 1/2‘ QEST male straight thread, 1 x 13 mm (1/2’) 90° hose connector and 1 x 13 mm (1/2") straight hose connector.
Current consumption max. 4.4A; fuse 10A
Dimensions: Height 12.1cm / Width 10.8cm (without connections) / Length 22.9cm
(ex codice FNI 1635260)
Available
Availability over 7d
| Product | Original ref. | Jabsco Italy Code | Model | Flow | Pressure | Self priming | Outlet Ø | Supply | Dimensions | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZR3626344A | R3626344A | 1003626344 | 2.9 | 11 L/MIN | 40 PSI | 1,8 M | 1/2" QEST | 24V - 2,2A | 121X108X229 MM | €113.09 | N | 1 |
| ZR3426144D | R3426144D | 1003426144 | 2.9 | 11 L/MIN | 25 PSI | 1,8 M | 1/2" QEST | 12V - 4,4A | 121X108X229 MM | €103.24 | N | 1 |
| ZR3426344A | R3426344A | 1003426344 | 2.9 | 11 L/MIN | 25 PSI | 1,8 M | 1/2" QEST | 24V - 2,2A | 121X108X229 MM | €113.16 | N | 1 |
| ZR3526144A | R3526144A | 1003526144 | 2.9 | 11 L/MIN | 50 PSI | 2,4 M | 1/2" QEST | 12V - 4,4A | 121X108X229 MM | €108.07 | N | 1 |
| ZR3426148D | R3426148D | 1003426148 | 2.0 | 8 L/MIN | 25 PSI | 1,8 M | 1/2" QEST | 12V - 3,5A | 121X108X229 MM | €109.86 | N | 1 |
| ZR3426348A | R3426348A | 1003426348 | 2.0 | 8 L/MIN | 25 PSI | 1,8 M | 1/2" QEST | 24V - 1,7A | 121X108X229 MM | €111.36 | N | 1 |
