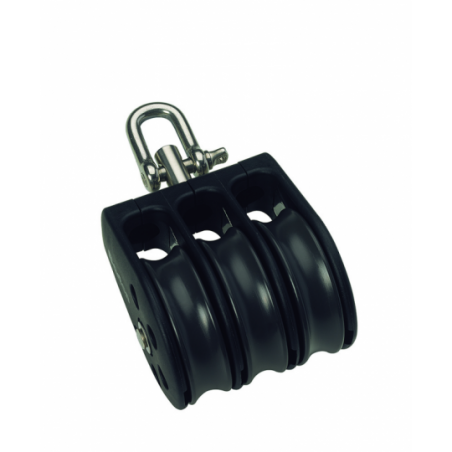

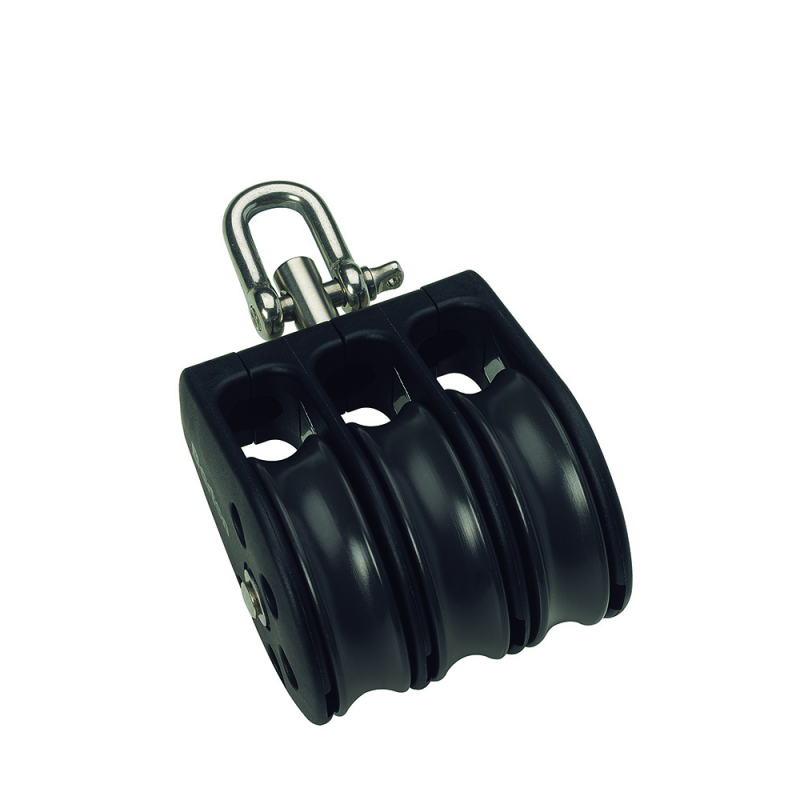

TRIPLE BLOCK - SWIVEL
Art. 7805330
The Barton block with three sheaves is built so that the mechanical advantage rises above a single or double block, useful for building a purchase when more force multiplication is needed; the swivel eye rotates to align itself with the direction of pull, stopping the line from twisting under load.
Body in corrosion-resistant marine materials, rated for a 750 kg working load and a 1500 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 12 mm
- Maximum working load 750 kg
- Breaking load 1500 kg
- Sheave dimensions 54 x 17 mm
- Length 150 mm
Body in corrosion-resistant marine materials, rated for a 750 kg working load and a 1500 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 12 mm
- Maximum working load 750 kg
- Breaking load 1500 kg
- Sheave dimensions 54 x 17 mm
- Length 150 mm
Available
Availability over 7d
| Product | Ø Wire | Ø | Working load | Breaking Load | Model | TYPE | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
7805330
|
MAX 12 MM | PULLEY 54 MM X H 17 MM | 750 KG | 1500 KG | TRIPLE | SWIVEL | €128.91 | N | 1 |
