SINGLE BLOCK - UPRIGHT
Art. 7804150

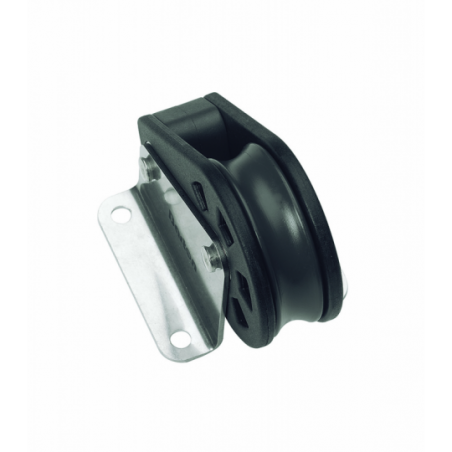

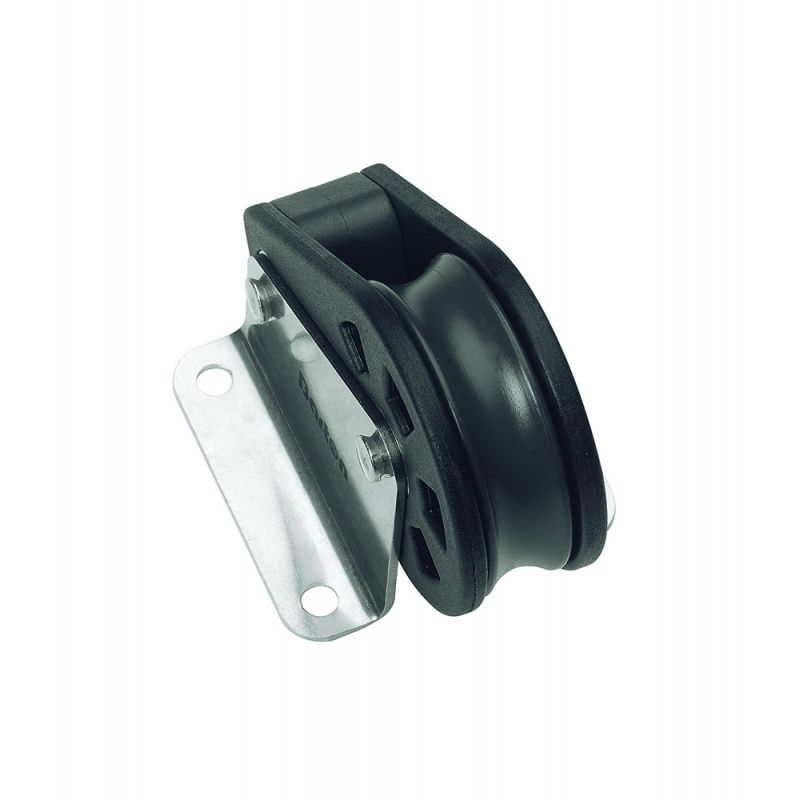

The Barton block with a single sheave is built so that with a vertical eye, oriented for a pull coming from above or below rather than from the side.
Body in corrosion-resistant marine materials, rated for a 750 kg working load and a 1500 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 12 mm
- Maximum working load 750 kg
- Breaking load 1500 kg
- Sheave dimensions 54 x 17 mm
- Length 92 mm
Body in corrosion-resistant marine materials, rated for a 750 kg working load and a 1500 kg breaking load: figures to respect as the equipment's safety margin, not to approach as normal use.
Technical specifications:
- Maximum line diameter 12 mm
- Maximum working load 750 kg
- Breaking load 1500 kg
- Sheave dimensions 54 x 17 mm
- Length 92 mm
Available
Availability over 7d
| Product | Ø Wire | Ø | Working load | Breaking Load | Model | TYPE | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|
7804150
|
MAX 12 MM | PULLEY 54 MM X H 17 MM | 750 KG | 1500 KG | SINGLE | UPRIGHT | €72.71 | N | 1 |
