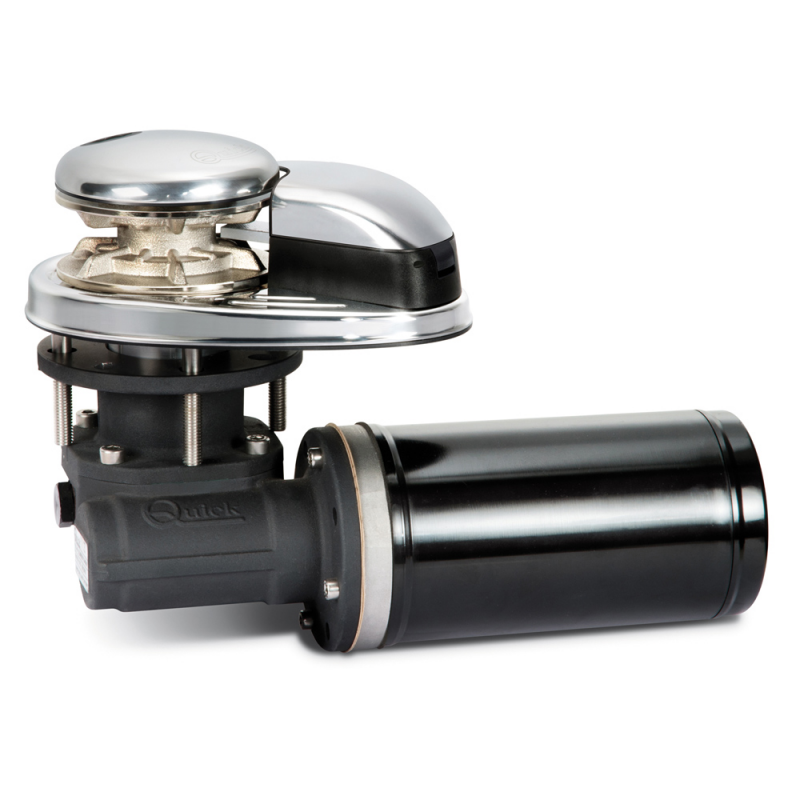

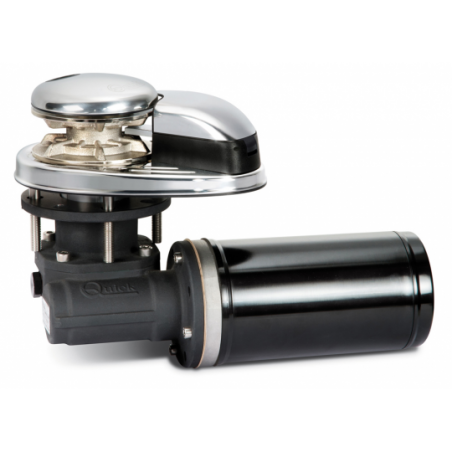

DP1 LOW PROFILE WINDLASS
Art. 0307004
The Quick DP1 anchor windlass, verticale body, without drum, handles the anchor manoeuvre while matching the pull the boat actually needs: base, drum and gypsy cover in AISI 316 stainless steel, with a composite interior combining strength and low weight. The manual free-fall system lets the chain run out quickly without turning the motor, while the inspection hatch gives direct access to the gypsy for maintenance.
Sealed motor and anodized aluminium gearbox for long service life even in a salt-air environment. Suited to boats from 6 a 9 metres.
Technical specifications:
- 500W power, 12V voltage
- 660 kg maximum instant pull
- Ø6mm chain
- 25,2 m/min retrieval speed
- 7,4 kg weight
- AISI 316 stainless steel base, drum and gypsy cover
- Sealed motor, anodized aluminium gearbox
- Manual chain free-fall system
Sealed motor and anodized aluminium gearbox for long service life even in a salt-air environment. Suited to boats from 6 a 9 metres.
Technical specifications:
- 500W power, 12V voltage
- 660 kg maximum instant pull
- Ø6mm chain
- 25,2 m/min retrieval speed
- 7,4 kg weight
- AISI 316 stainless steel base, drum and gypsy cover
- Sealed motor, anodized aluminium gearbox
- Manual chain free-fall system
Available
Availability over 7d
| Product | Drum | Boat Length | Thickness | POWER | Instant pull | Ø | Speed | Weight | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
0307004
|
NO | 5-8,5 MT | DECK 20/30 MM | 500 WATT - 12 VOLT | MAX 660 KG | CHAIN 6 MM | RECOVERY 25,2 MT/MIN | 7,4 KG | €1,394.63 | N | 1 |
