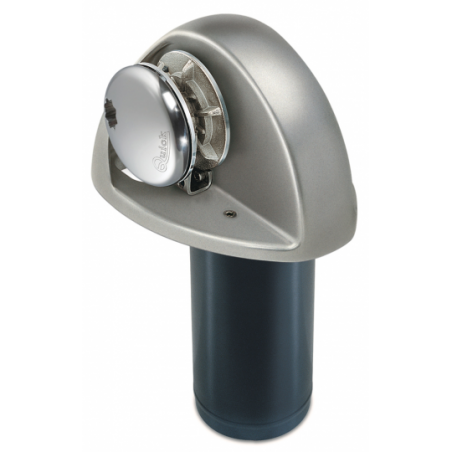

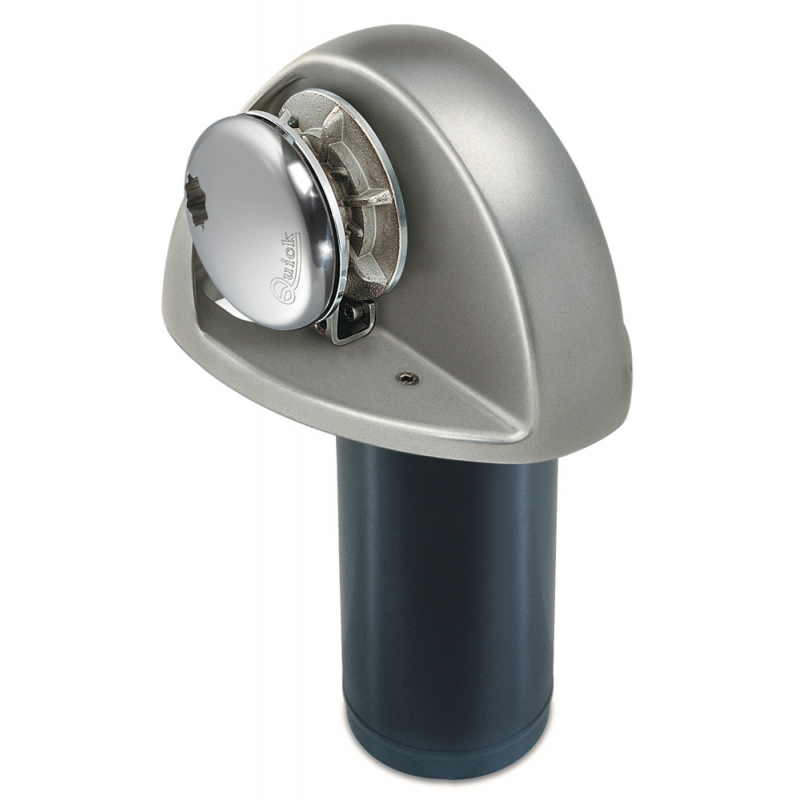

EAGLE LOW PROFILE WINDLASS
Art. 0307603
The Quick Eagle anchor windlass, drum-less version, has a horizontal motor axis instead of a vertical one: at this lower power tier the configuration doesn't change the space needed below deck, but it does allow simpler mounting on a flat deck. AISI 316 stainless steel base, drum and gypsy cover with a composite interior, rope and chain on a single gypsy, rope tensioner, inspection hatch, IP67 sealed motor, anodized aluminium gearbox.
Suited to boats from 6 to 9 metres.
Technical specifications:
- 500W power, 12V voltage
- 630 kg maximum instant pull
- Ø6mm chain
- 22 m/min retrieval speed
- 9.3 kg weight
- Horizontal motor axis
- AISI 316 stainless steel base, IP67 sealed motor
Suited to boats from 6 to 9 metres.
Technical specifications:
- 500W power, 12V voltage
- 630 kg maximum instant pull
- Ø6mm chain
- 22 m/min retrieval speed
- 9.3 kg weight
- Horizontal motor axis
- AISI 316 stainless steel base, IP67 sealed motor
Available
Availability over 7d
| Product | Drum | Boat Length | Thickness | POWER | Instant pull | Ø | Speed | Weight | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
0307603
|
NO | 6-9 MT | DECK 20/40 MM | 500 WATT - 12 VOLT | MAX 630 KG | CHAIN 6 MM | RECOVERY 22,2 MT/MIN | 9,3 KG | €1,769.71 | N | 1 |
Forniture nautiche italiane sells only to retailers and installers of the sector
How to became reseller?
