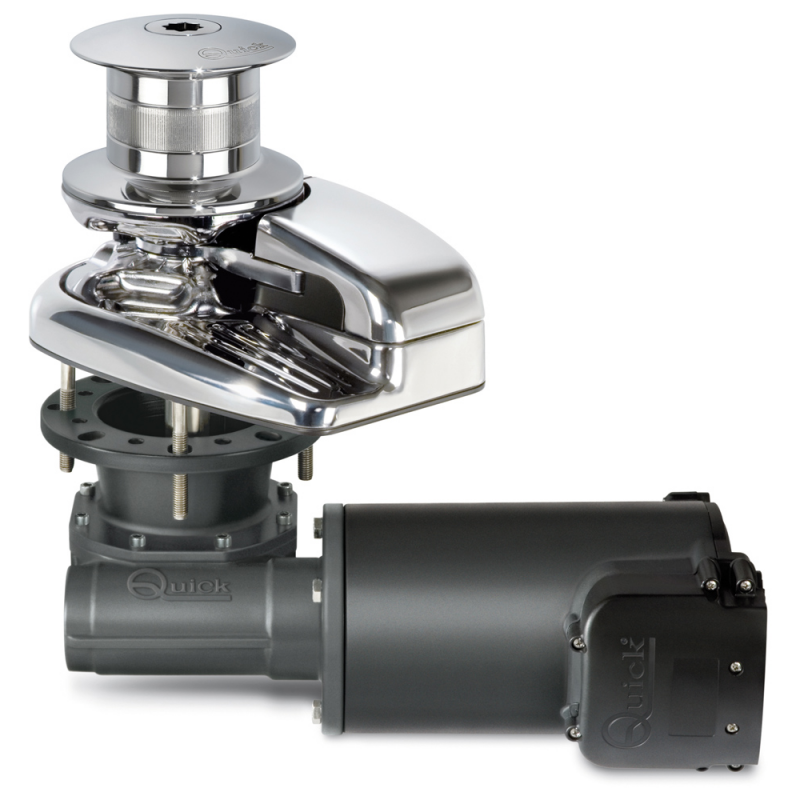

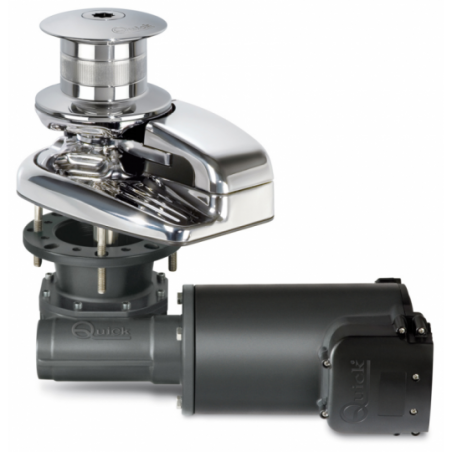

DYLAN WINDLASS WITH DRUM
Art. 0307119
The Quick Dylan anchor windlass, verticale body, with drum, handles the anchor manoeuvre while matching the pull the boat actually needs: base, drum and gypsy cover in AISI 316 stainless steel, with a composite interior combining strength and low weight. The manual free-fall system lets the chain run out quickly without turning the motor, while the inspection hatch gives direct access to the gypsy for maintenance.
Sealed motor and anodized aluminium gearbox for long service life even in a salt-air environment. It also includes a manual emergency recovery system, to raise the anchor even in case of an electrical fault. Suited to boats from 14 a 18 metres.
Technical specifications:
- 1700W power, 12V voltage
- 1150 kg maximum instant pull
- Ø12mm chain, Ø19mm rope
- 33,5 m/min retrieval speed
- 29,1 kg weight
- AISI 316 stainless steel base, drum and gypsy cover
- Sealed motor, anodized aluminium gearbox
- Manual chain free-fall system
Sealed motor and anodized aluminium gearbox for long service life even in a salt-air environment. It also includes a manual emergency recovery system, to raise the anchor even in case of an electrical fault. Suited to boats from 14 a 18 metres.
Technical specifications:
- 1700W power, 12V voltage
- 1150 kg maximum instant pull
- Ø12mm chain, Ø19mm rope
- 33,5 m/min retrieval speed
- 29,1 kg weight
- AISI 316 stainless steel base, drum and gypsy cover
- Sealed motor, anodized aluminium gearbox
- Manual chain free-fall system
Available
Availability over 7d
| Product | Drum | Boat Length | Thickness | POWER | Instant pull | Ø | Speed | Weight | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
0307119
|
YES | 14-18 MT | DECK 30/70 MM | 1700 WATT - 12 VOLT | MAX 1150 KG | CHAIN 12 MM - ROPE 19 MM | RECOVERY 33,5 MT/MIN | 29,1 KG | €4,074.50 | N |
4
18/11/2026
Alert The date is purely indicative |
