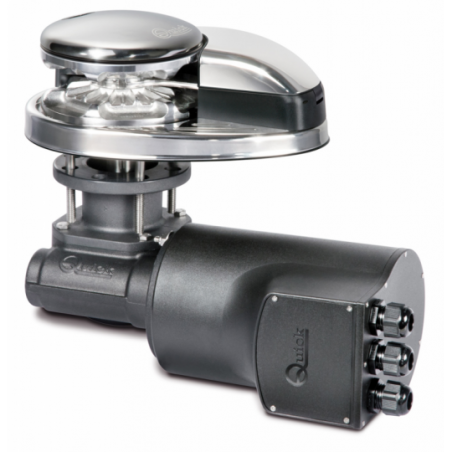

DP3 LOW PROFILE WINDLASS
Art. 0307040
The Quick DP3 anchor windlass, verticale body, without drum, handles the anchor manoeuvre while matching the pull the boat actually needs: base, drum and gypsy cover in AISI 316 stainless steel, with a composite interior combining strength and low weight. The manual free-fall system lets the chain run out quickly without turning the motor, while the inspection hatch gives direct access to the gypsy for maintenance.
Sealed motor and anodized aluminium gearbox for long service life even in a salt-air environment. Rope and chain run on a single gypsy, with a built-in rope-tensioning device. Suited to boats from 12 a 15 metres.
Technical specifications:
- 1500W power, 12V voltage
- 1100 kg maximum instant pull
- Ø8mm chain, Ø12-14-16mm rope
- 29,2 m/min retrieval speed
- 20,4 kg weight
- AISI 316 stainless steel base, drum and gypsy cover
- Sealed motor, anodized aluminium gearbox
- Manual chain free-fall system
Sealed motor and anodized aluminium gearbox for long service life even in a salt-air environment. Rope and chain run on a single gypsy, with a built-in rope-tensioning device. Suited to boats from 12 a 15 metres.
Technical specifications:
- 1500W power, 12V voltage
- 1100 kg maximum instant pull
- Ø8mm chain, Ø12-14-16mm rope
- 29,2 m/min retrieval speed
- 20,4 kg weight
- AISI 316 stainless steel base, drum and gypsy cover
- Sealed motor, anodized aluminium gearbox
- Manual chain free-fall system
Available
Availability over 7d
| Product | Drum | Boat Length | Thickness | POWER | Instant pull | Ø | Speed | Weight | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
0307041
|
NO | 12-15 MT | DECK 30/50 MM | 1500 WATT - 12 VOLT | MAX 1100 KG | CHAIN 10 MM - ROPE 16 MM | RECOVERY 29,2 MT/MIN | 20,4 KG | €2,510.19 | N |
4
18/11/2026
Alert The date is purely indicative |
|
0307045
|
NO | 12-15 MT | DECK 30/50 MM | 1500 WATT - 24 VOLT | MAX 1100 KG | CHAIN 10 MM - ROPE 16 MM | RECOVERY 29,7 MT/MIN | 20,4 KG | €2,609.91 | N | 1 |
|
0307044
|
NO | 12-15 MT | DECK 30/50 MM | 1500 WATT - 24 VOLT | MAX 1100 KG | CHAIN 8 MM - ROPE 12/14/16 MM | RECOVERY 29,7 MT/MIN | 20,4 KG | €2,609.91 | N | 1 |
|
0307040
|
NO | 12-15 MT | DECK 30/50 MM | 1500 WATT - 12 VOLT | MAX 1100 KG | CHAIN 8 MM - ROPE 12/14/16 MM | RECOVERY 29,2 MT/MIN | 20,4 KG | €2,510.19 | N |
4
18/11/2026
Alert The date is purely indicative |
