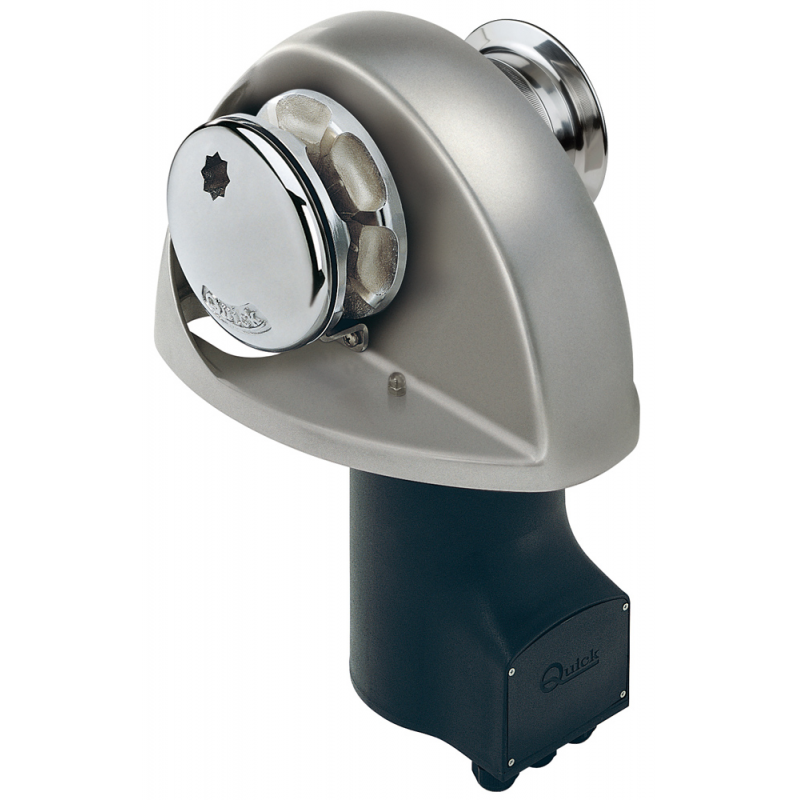

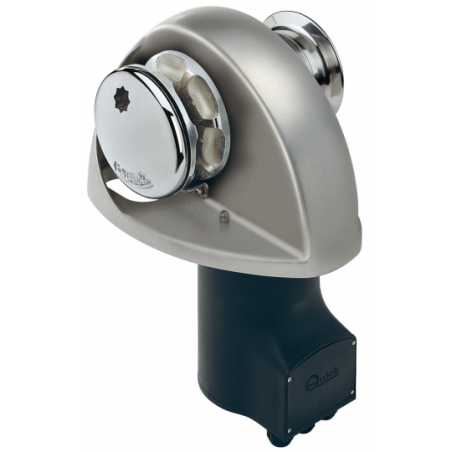

EAGLE WINDLASS WITH DRUM
Art. 0307617
The Quick Eagle anchor windlass, drum version, uses the horizontal motor axis for a retrieval speed much higher than a same-power vertical-axis model (almost double a 1000W DP2): the mechanical advantage of horizontal transmission, useful on larger boats where manoeuvring time matters. AISI 316 stainless steel base, drum and gypsy cover with a composite interior, rope and chain on a single gypsy, rope tensioner, inspection hatch, IP67 sealed motor, anodized aluminium gearbox.
Suited to boats from 10 to 13 metres.
Technical specifications:
- 1000W power, 24V voltage
- 1250 kg maximum instant pull
- Ø8mm chain
- 47.8 m/min retrieval speed
- 23.5 kg weight
- Horizontal motor axis, high retrieval speed
- AISI 316 stainless steel base, IP67 sealed motor
Suited to boats from 10 to 13 metres.
Technical specifications:
- 1000W power, 24V voltage
- 1250 kg maximum instant pull
- Ø8mm chain
- 47.8 m/min retrieval speed
- 23.5 kg weight
- Horizontal motor axis, high retrieval speed
- AISI 316 stainless steel base, IP67 sealed motor
Available
Availability over 7d
| Product | Drum | Boat Length | Thickness | POWER | Instant pull | Ø | Speed | Weight | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
0307617
|
YES | 10-13 MT | DECK 25/50 MM | 1000 WATT - 24 VOLT | MAX 1250 KG | CHAIN 8 MM | RECOVERY 47,8 MT/MIN | 23,5 KG | €3,457.55 | N | 1 |
